SNHQ 1204AZEN:M8340
SNHQ 1204AZEN:M8340

SNHQ 1204AZEN:M8340

UGC DOR6800881
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.33 CAD - $28.33 CAD
$28.33 CAD
$28.33 CAD - $28.33 CAD
$28.33 CAD

Vendu en lots de : 10

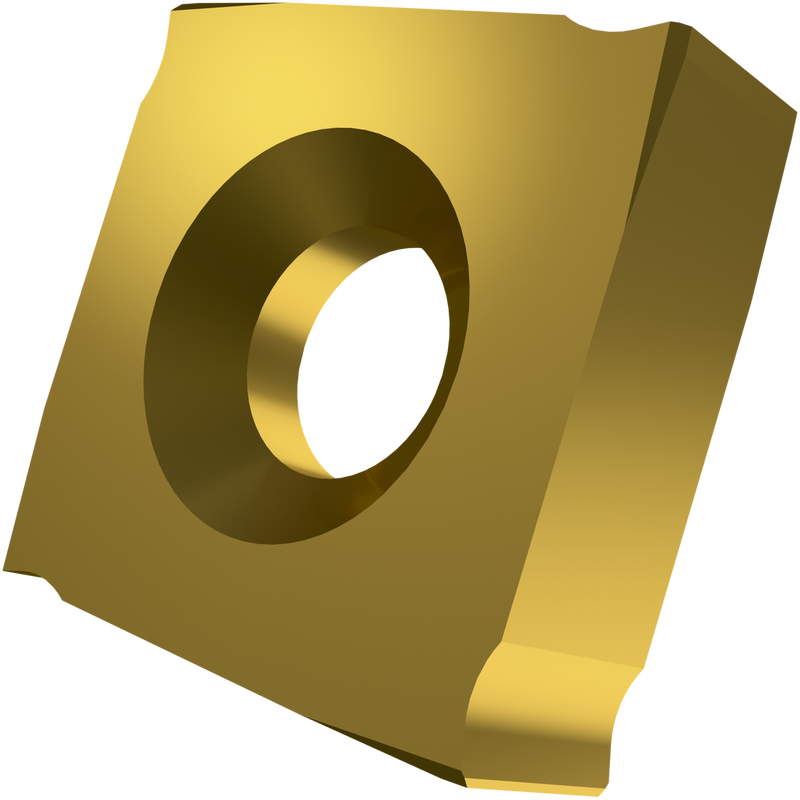

Plaquette de fraisage à disque double face, pour une largeur de coupe de .315" avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8340, dans la plage de nuances ISO P25-P50 pour l'usinage de l'acier avec les fraises à disque S90SN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNHQ 1204AZEN:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux -pas de désignation
Product Number6800881
Product FamilySNHQ AZ
Insert Geometry
Insert DesignSHNQ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Tool Information
Reference Numbers
EDP Number6800881
EAN3603602995124
File Type Download

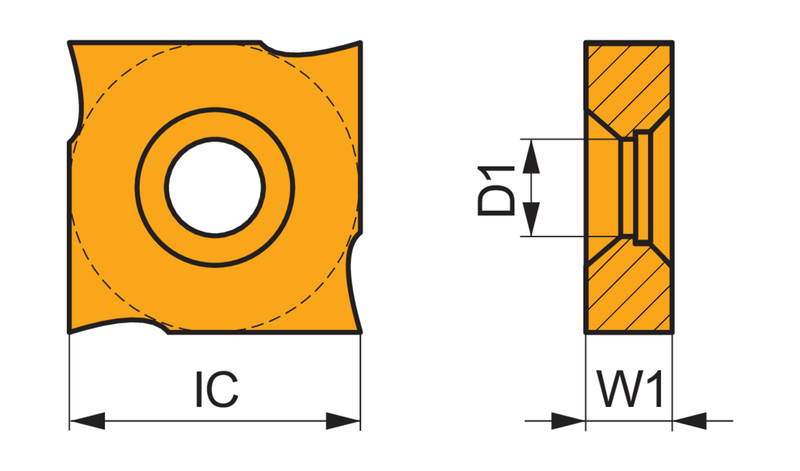

SNHQ 1204AZEN:M8340 — Line Drawing PDF Download
