SPG 322:M8340
SPG 322:M8340

SPG 322:M8340

UGC DOR6800895
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.36 CAD - $14.36 CAD
$14.36 CAD
$14.36 CAD - $14.36 CAD
$14.36 CAD

Vendu en lots de : 10

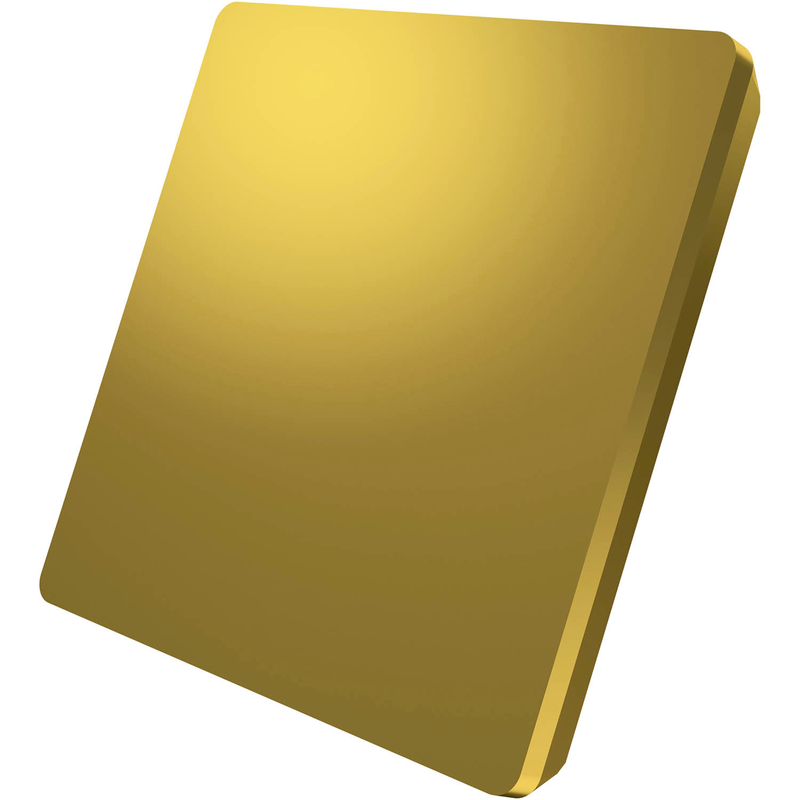

Plaquette de fraisage simple face SPGN 0903 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 6 mm, avec un rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-G, en carbure WC-Co à grain fin revêtu PVD M8340 pour l'usinage avec des fraises à épaulement WSP25P

For more information about this product, click here

Identification
Ordering Code (ANSI)SPG 322:M8340
Product Name (ISO)SPGN 090308:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6800895
Product FamilySPGN

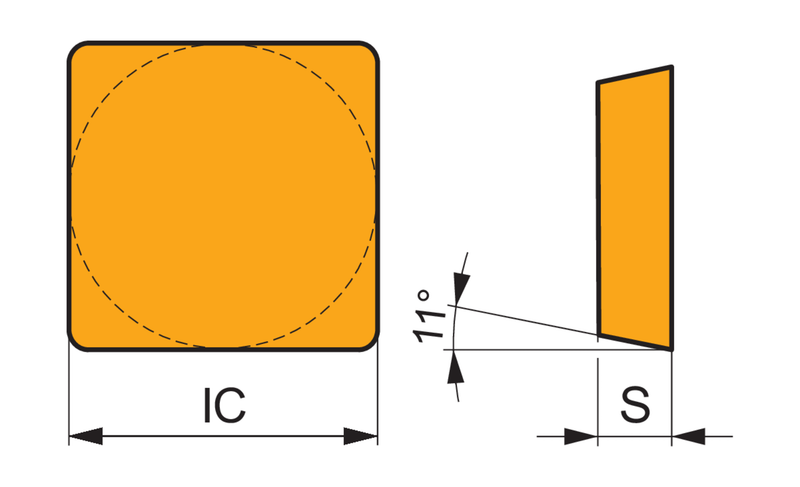

Insert Geometry
Insert DesignSPGN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6800895
EAN3603602995261
File Type Download
SPG 322:M8340 — Line Drawing PDF Download
