RDMX 12T3MOT:M8325
RDMX 12T3MOT:M8325

RDMX 12T3MOT:M8325

UGC DOR6801040
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.26 CAD - $18.26 CAD
$18.26 CAD
$18.26 CAD - $18.26 CAD
$18.26 CAD

Vendu en lots de : 10

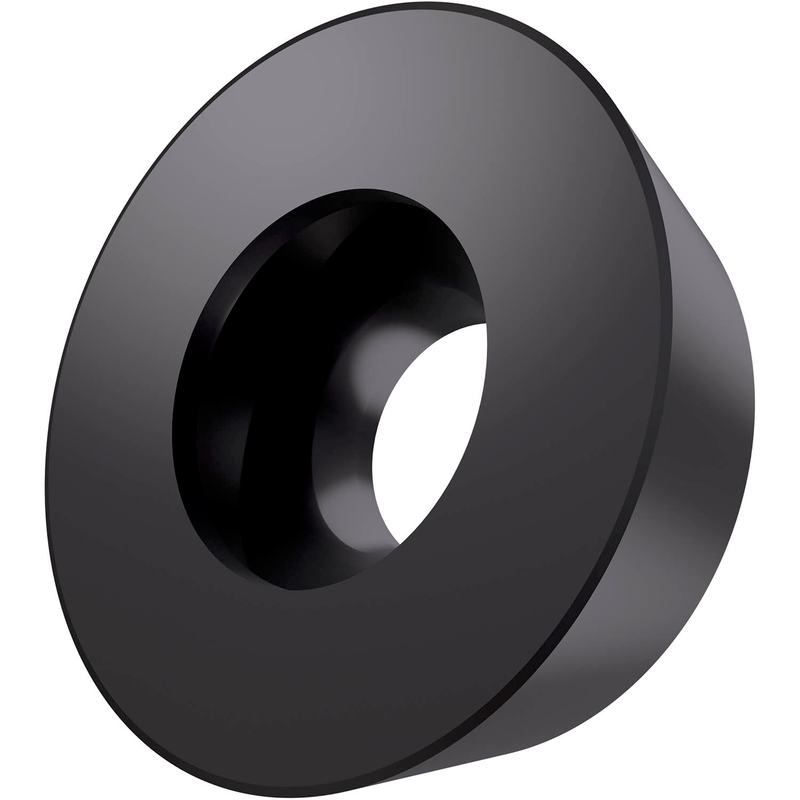

Plaquette de fraisage simple face RDMX 12T3, ronde pour une profondeur de coupe maximale de 3 mm, avec rayon d'angle ", une précision de positionnement selon la classe de tolérance ISO-M avec arêtes de coupe à facette, carbure WC-(Ti, Ta, Nb)C-Co revêtu PVD M8325 pour l'usinage avec les fraises à copier SRD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDMX 12T3MOT:M8325
GradeM8325
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801040
Product FamilyRDMX 12
Insert Geometry
Insert DesignRDMX
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6801040
EAN3603602995315
File Type Download

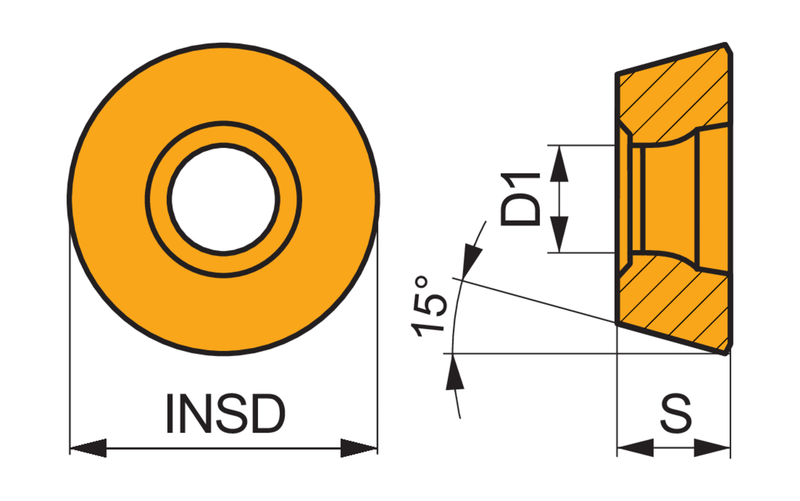

RDMX 12T3MOT:M8325 — Line Drawing PDF Download
