802D-1000-200-S125
802D-1000-200-S125
802D-1000-200-S125

802D-1000-200-S125

UGC DOR6801105
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$707.00 CAD - $707.00 CAD
$707.00 CAD
$707.00 CAD - $707.00 CAD
$707.00 CAD

Vendu en lots de : 1

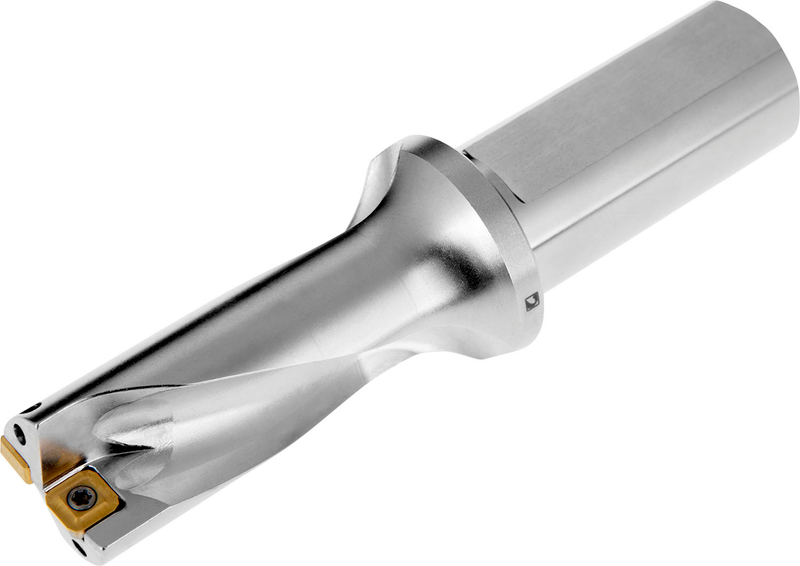

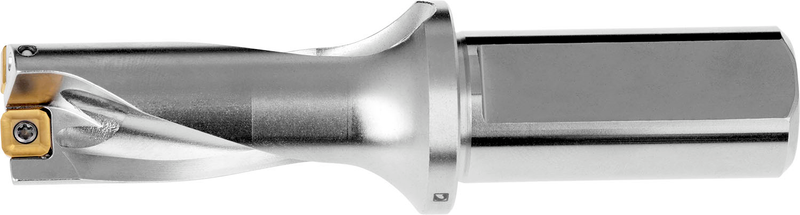

Foret à plaquettes amovibles utilisant une plaquette XPET 0703.. dans le logement central et une plaquette SCET 0703.. dans le logement périphérique, diamètre de coupe 1,000'', avec une queue cylindrique 1,250'' à méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 2 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)802D-1000-200-S125
Product Number6801105
Product FamilyI802D
Insert Geometry
Depth of Cut Max — in (APMX)2.0"
Depth of Cut Max — mm (APMX)50.8 mm

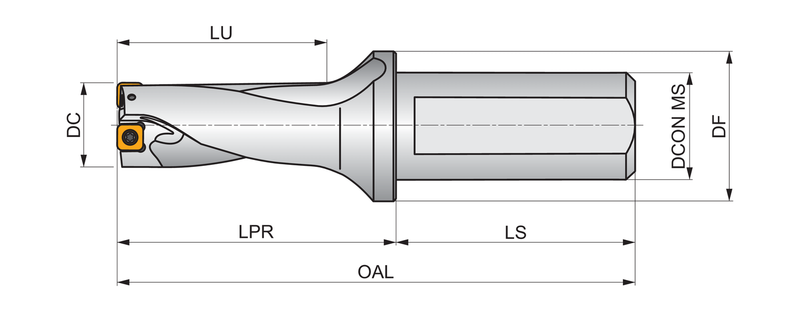

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)5.346"
Overall Length — mm (OAL)136.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)2.205"
Usable Length — mm (LU)56.01 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801105
EAN3603602994219
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
802D-1000-200-S125 — 3D Model STP Download
802D-1000-200-S125 — 2D Model DXF Download
802D-1000-200-S125 — Line Drawing PDF Download
