802D-1062-212-S125
802D-1062-212-S125
802D-1062-212-S125

802D-1062-212-S125

UGC DOR6801107
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$795.00 CAD - $795.00 CAD
$795.00 CAD
$795.00 CAD - $795.00 CAD
$795.00 CAD

Vendu en lots de : 1

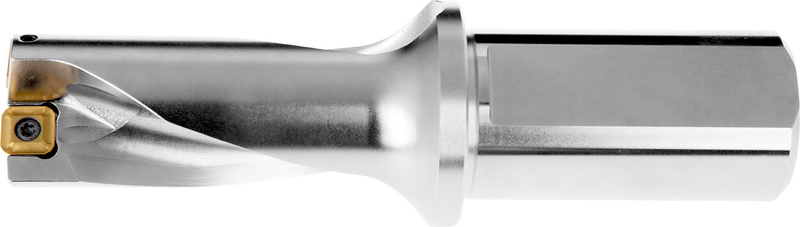

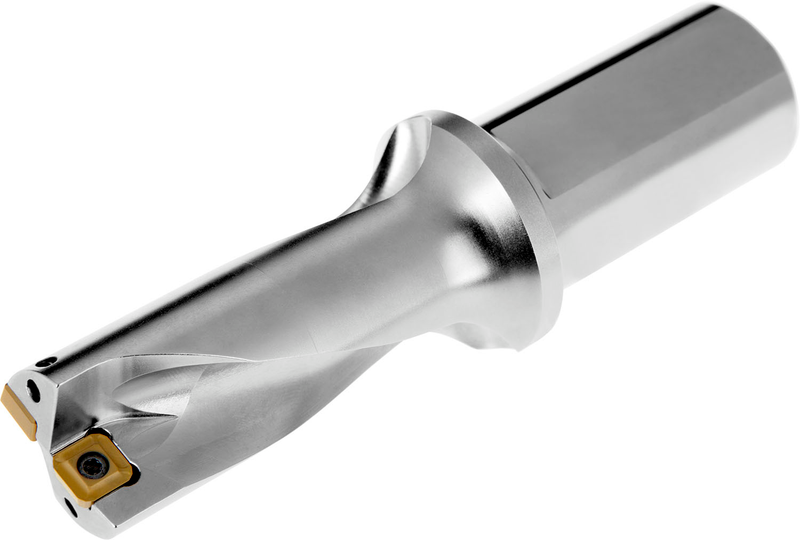

Foret à plaquettes utilisable avec une plaquette XPET 0903... dans la poche centrale et une plaquette SCET 0703... dans la poche périphérique, diamètre de coupe 1,062'', avec une queue cylindrique de 1,250'' avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 2 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)802D-1062-212-S125
Product Number6801107
Product FamilyI802D
Insert Geometry
Depth of Cut Max — in (APMX)2.124"
Depth of Cut Max — mm (APMX)53.95 mm

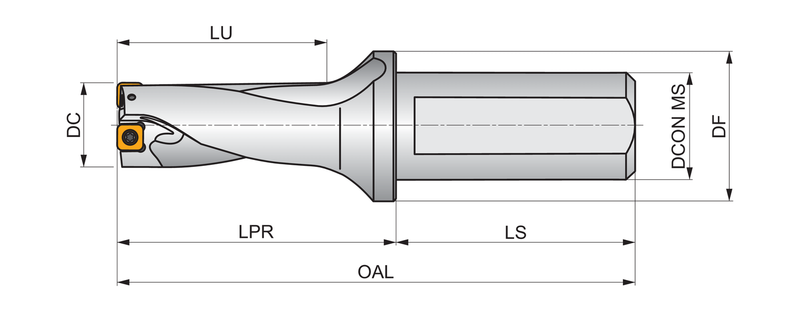

Dimensions
Cutting Diameter — in (DC)1.062"
Cutting Diameter — mm (DC)27.0 mm
Overall Length — in (OAL)5.469"
Overall Length — mm (OAL)139.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)2.358"
Usable Length — mm (LU)59.89 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801107
EAN3603602994233
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
802D-1062-212-S125 — 3D Model STP Download
802D-1062-212-S125 — 2D Model DXF Download
802D-1062-212-S125 — Line Drawing PDF Download
