803D-0766-229-S100
803D-0766-229-S100
803D-0766-229-S100

803D-0766-229-S100

UGC DOR6801126
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$710.00 CAD - $710.00 CAD
$710.00 CAD
$710.00 CAD - $710.00 CAD
$710.00 CAD

Vendu en lots de : 1

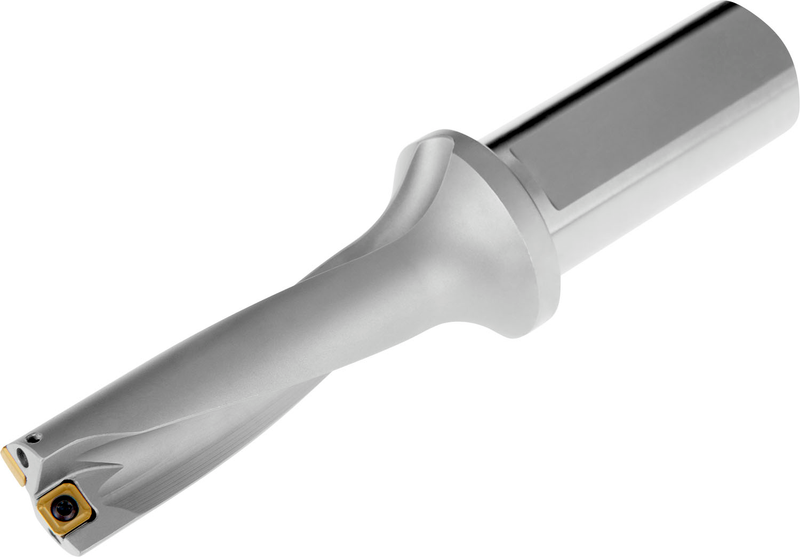

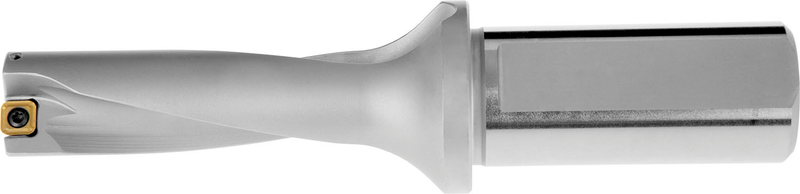

Foret à plaquettes amovibles utilisant une plaquette XPET 0602.. dans le logement central et une plaquette SCET 0602.. dans le logement périphérique, diamètre de coupe 0,766'', avec une queue cylindrique de 1,000'' à méplat conforme à la norme ISO 9766 et un arrosage central pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-0766-229-S100
Product Number6801126
Product FamilyI803D
Insert Geometry
Depth of Cut Max — in (APMX)2.298"
Depth of Cut Max — mm (APMX)58.37 mm
Dimensions
Cutting Diameter — in (DC)0.766"
Cutting Diameter — mm (DC)19.5 mm
Overall Length — in (OAL)5.528"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)2.484"
Usable Length — mm (LU)63.09 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801126
EAN3603602994424
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-0766-229-S100 — 3D Model STP Download
803D-0766-229-S100 — 2D Model DXF Download
803D-0766-229-S100 — Line Drawing PDF Download
