803D-0984-295-S125
803D-0984-295-S125
803D-0984-295-S125

803D-0984-295-S125

UGC DOR6801134
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$785.00 CAD - $785.00 CAD
$785.00 CAD
$785.00 CAD - $785.00 CAD
$785.00 CAD

Vendu en lots de : 1

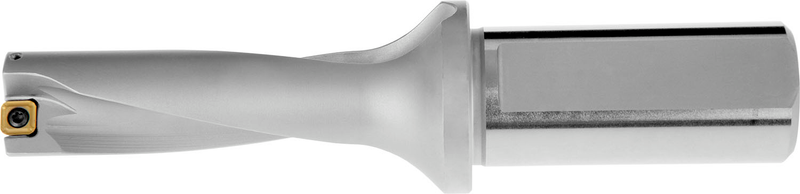

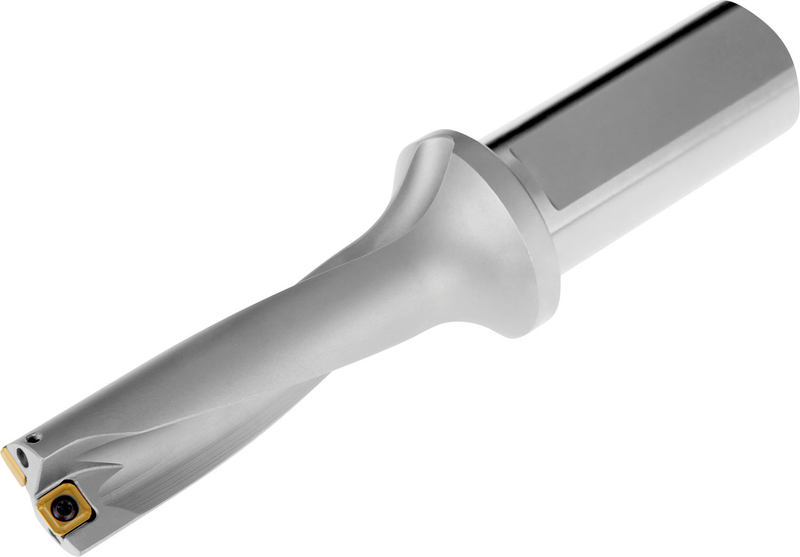

Forets à plaquettes indexables qui utilisent une plaquette XPET 0703... dans la poche centrale et une plaquette SCET 0703... dans la poche périphérique, diamètre de coupe 0,984'', avec une queue cylindrique de 1,250'' avec méplat selon la norme ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-0984-295-S125
Product Number6801134
Product FamilyI803D
Insert Geometry
Depth of Cut Max — in (APMX)2.952"
Depth of Cut Max — mm (APMX)74.98 mm
Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)3.15"
Usable Length — mm (LU)80.01 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801134
EAN3603602994509
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-0984-295-S125 — 3D Model STP Download
803D-0984-295-S125 — 2D Model DXF Download
803D-0984-295-S125 — Line Drawing PDF Download
