803D-1437-431-S150
803D-1437-431-S150
803D-1437-431-S150

803D-1437-431-S150

UGC DOR6801146
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$945.00 CAD - $945.00 CAD
$945.00 CAD
$945.00 CAD - $945.00 CAD
$945.00 CAD

Vendu en lots de : 1

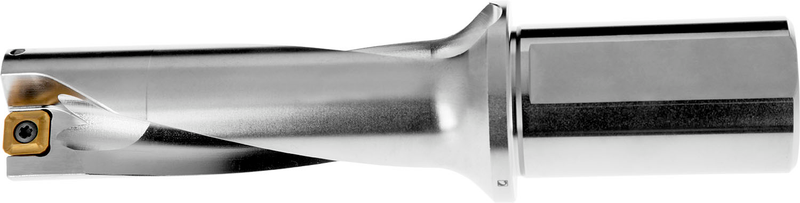

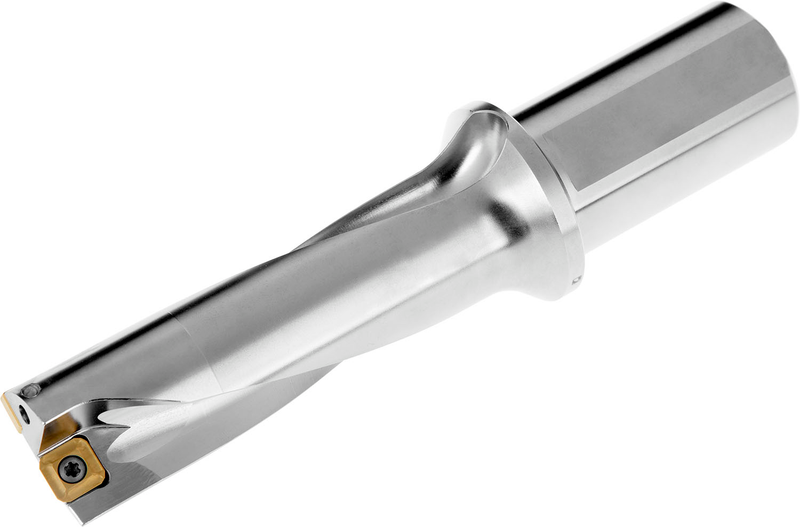

Trépan à plaquettes indexables utilisant une plaquette XPET 11T3.. dans le logement central et une plaquette SCET 1204.. dans le logement périphérique, diamètre de coupe 1.437'', avec une queue cylindrique de 1.500'' à méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales allant jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-1437-431-S150
Product Number6801146
Product FamilyI803D
Insert Geometry
Depth of Cut Max — in (APMX)4.311"
Depth of Cut Max — mm (APMX)109.5 mm
Dimensions
Cutting Diameter — in (DC)1.437"
Cutting Diameter — mm (DC)36.5 mm
Overall Length — in (OAL)7.933"
Overall Length — mm (OAL)201.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)4.535"
Usable Length — mm (LU)115.19 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801146
EAN3603602994622
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-1437-431-S150 — 3D Model STP Download
803D-1437-431-S150 — 2D Model DXF Download
803D-1437-431-S150 — Line Drawing PDF Download
