803D-1750-525-S150
803D-1750-525-S150
803D-1750-525-S150

803D-1750-525-S150

UGC DOR6801148
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,038.00 CAD - $1,038.00 CAD
$1,038.00 CAD
$1,038.00 CAD - $1,038.00 CAD
$1,038.00 CAD

Vendu en lots de : 1

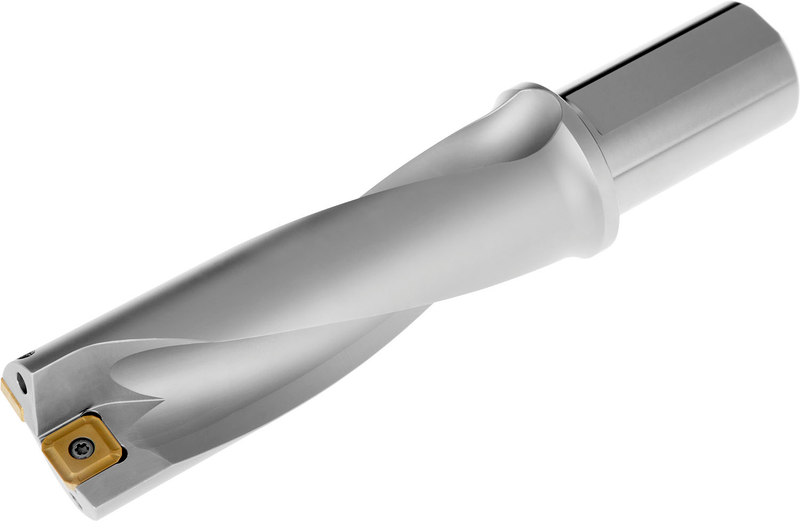

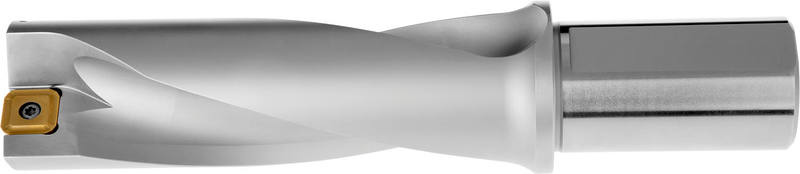

Foret à plaquettes indexables qui utilise une plaquette XPET 12T3... dans la poche centrale et une plaquette SCET 1204... dans la poche périphérique, diamètre de coupe 1,750'', avec une queue cylindrique de 1,500'' avec méplat selon ISO 9766 et arrosage interne pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-1750-525-S150
Product Number6801148
Product FamilyI803D
Insert Geometry
Depth of Cut Max — in (APMX)5.25"
Depth of Cut Max — mm (APMX)133.35 mm
Dimensions
Cutting Diameter — in (DC)1.75"
Cutting Diameter — mm (DC)44.5 mm
Overall Length — in (OAL)8.843"
Overall Length — mm (OAL)225.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)5.642"
Usable Length — mm (LU)143.31 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801148
EAN3603602994646
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-1750-525-S150 — 3D Model STP Download
803D-1750-525-S150 — 2D Model DXF Download
803D-1750-525-S150 — Line Drawing PDF Download
