804D-0812-324-S100
804D-0812-324-S100
804D-0812-324-S100

804D-0812-324-S100

UGC DOR6801158
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$782.00 CAD - $782.00 CAD
$782.00 CAD
$782.00 CAD - $782.00 CAD
$782.00 CAD

Vendu en lots de : 1

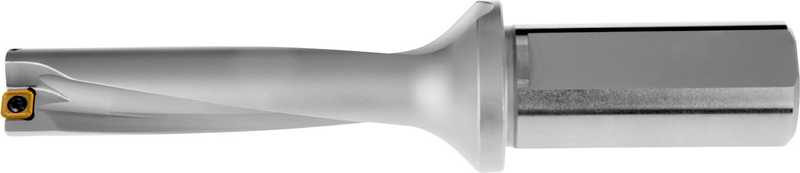

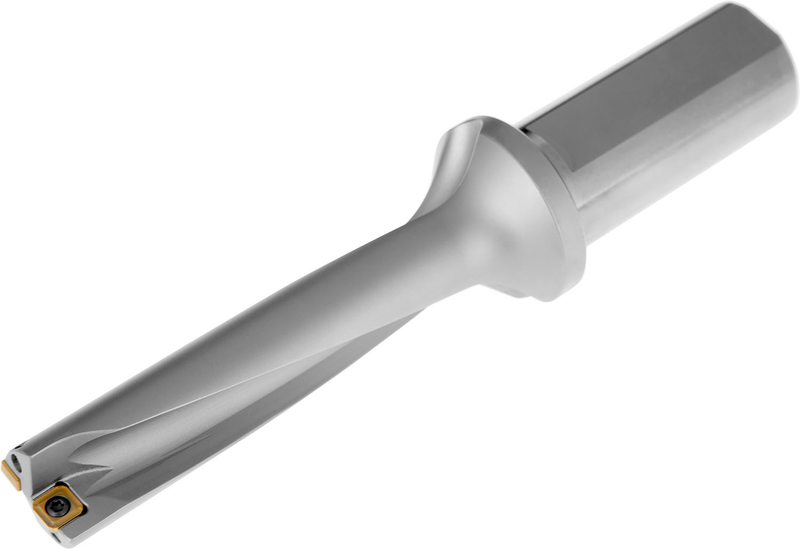

Foret à plaquettes amovibles qui utilise une plaquette XPET 0602.. dans la poche centrale et une plaquette SCET 0602.. dans la poche périphérique, diamètre de coupe 0,812'', avec une queue cylindrique de 1,000'' avec méplat selon ISO 9766 et arrosage interne pour des profondeurs de perçage maximales jusqu'à 4 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)804D-0812-324-S100
Product Number6801158
Product FamilyI804D
Insert Geometry
Depth of Cut Max — in (APMX)3.248"
Depth of Cut Max — mm (APMX)82.5 mm

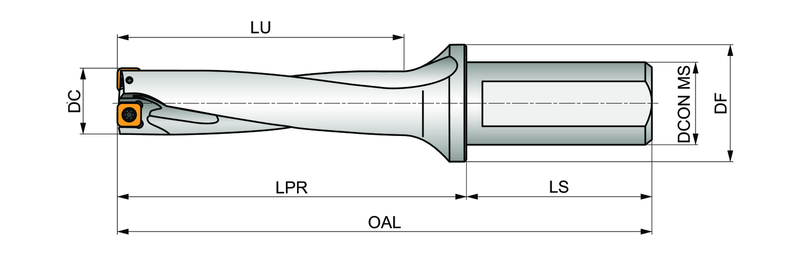

Dimensions
Cutting Diameter — in (DC)0.812"
Cutting Diameter — mm (DC)20.6 mm
Overall Length — in (OAL)6.476"
Overall Length — mm (OAL)164.0 mm
Length × Diameter Ratio4
Usable Length — in (LU)3.457"
Usable Length — mm (LU)87.81 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801158
EAN3603602994745
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
804D-0812-324-S100 — 3D Model STP Download
804D-0812-324-S100 — 2D Model DXF Download
804D-0812-324-S100 — Line Drawing PDF Download
