804D-1187-474-S125
804D-1187-474-S125
804D-1187-474-S125

804D-1187-474-S125

UGC DOR6801171
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$937.00 CAD - $937.00 CAD
$937.00 CAD
$937.00 CAD - $937.00 CAD
$937.00 CAD

Vendu en lots de : 1

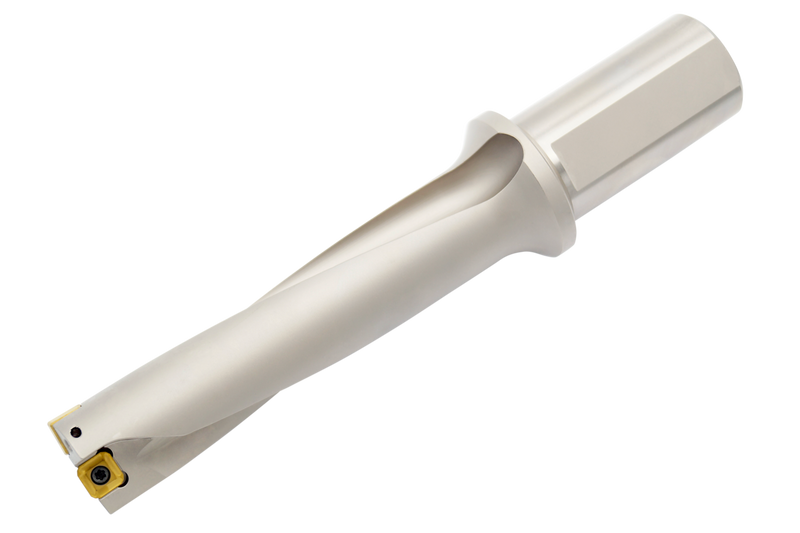

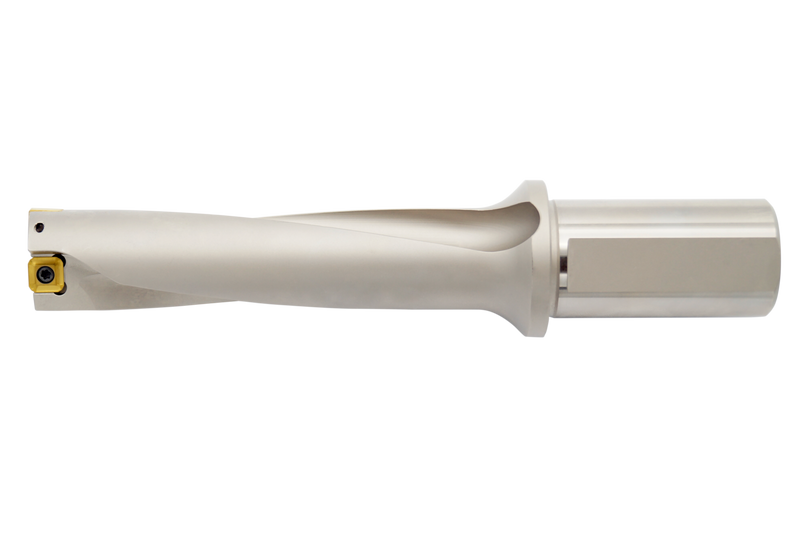

Foret à plaquettes amovibles utilisant une plaquette XPET 0903.. dans le logement central et une plaquette SCET 09T3.. dans le logement périphérique, diamètre de coupe 1,187'', avec une queue cylindrique 1,250'' à méplat selon ISO 9766 et arrosage interne pour des profondeurs de perçage maximales jusqu'à 4 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)804D-1187-474-S125
Product Number6801171
Product FamilyI804D
Insert Geometry
Depth of Cut Max — in (APMX)4.748"
Depth of Cut Max — mm (APMX)120.6 mm

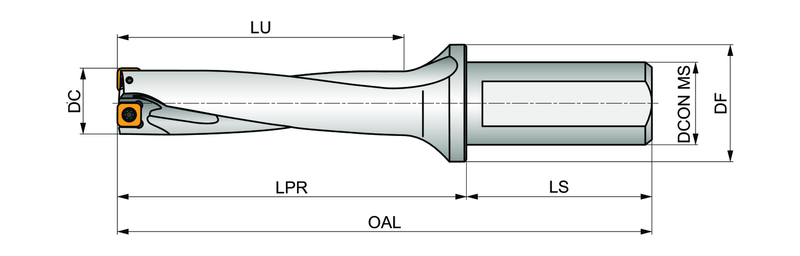

Dimensions
Cutting Diameter — in (DC)1.187"
Cutting Diameter — mm (DC)30.1 mm
Overall Length — in (OAL)8.094"
Overall Length — mm (OAL)206.0 mm
Length × Diameter Ratio4
Usable Length — in (LU)5.043"
Usable Length — mm (LU)128.09 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801171
EAN3603602994875
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
804D-1187-474-S125 — Line Drawing PDF Download
