804D-1312-524-S150
804D-1312-524-S150
804D-1312-524-S150

804D-1312-524-S150

UGC DOR6801173
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$996.00 CAD - $996.00 CAD
$996.00 CAD
$996.00 CAD - $996.00 CAD
$996.00 CAD

Vendu en lots de : 1

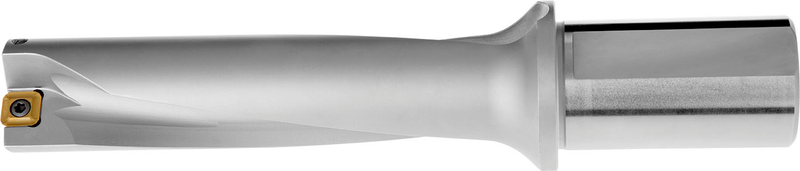

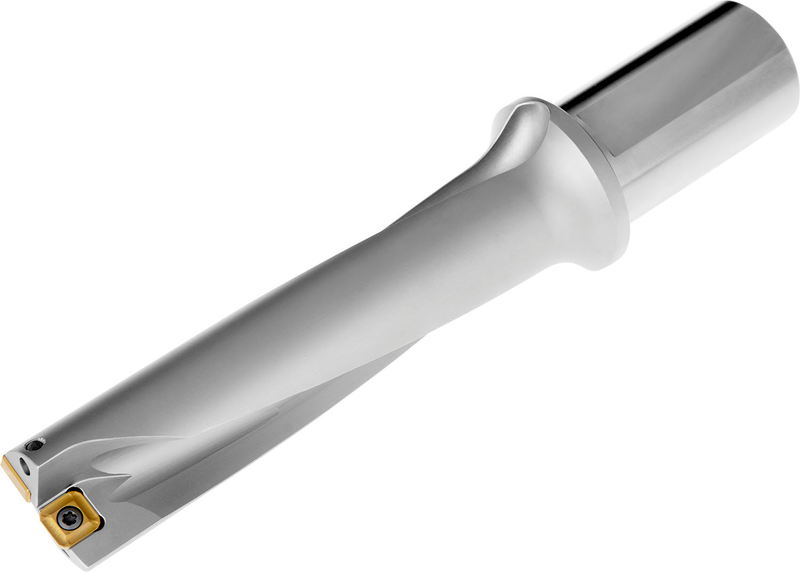

Foret à plaquettes indexables utilisant une plaquette XPET 11T3... dans la poche centrale et une plaquette SCET 09T3... dans la poche périphérique, diamètre de coupe 1.312", avec une queue cylindrique 1.500" à méplat selon ISO 9766 et un arrosage central pour des profondeurs de perçage maximales allant jusqu'à 4 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)804D-1312-524-S150
Product Number6801173
Product FamilyI804D
Insert Geometry
Depth of Cut Max — in (APMX)5.248"
Depth of Cut Max — mm (APMX)133.3 mm

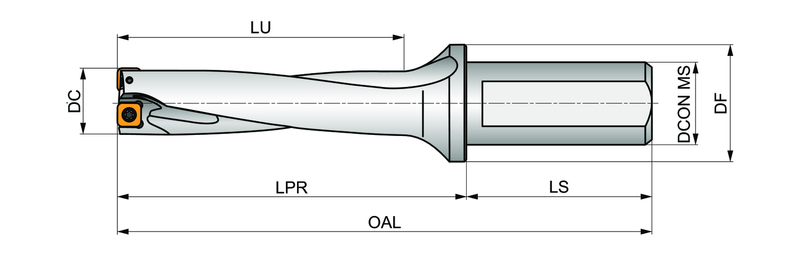

Dimensions
Cutting Diameter — in (DC)1.312"
Cutting Diameter — mm (DC)33.3 mm
Overall Length — in (OAL)8.87"
Overall Length — mm (OAL)225.0 mm
Length × Diameter Ratio4
Usable Length — in (LU)5.449"
Usable Length — mm (LU)138.4 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801173
EAN3603602994899
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
804D-1312-524-S150 — 3D Model STP Download
804D-1312-524-S150 — 2D Model DXF Download
804D-1312-524-S150 — Line Drawing PDF Download
