PSR5-R25:T9335
PSR5-R25:T9335

PSR5-R25:T9335

UGC DOR6801188
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.14 CAD - $102.14 CAD
$102.14 CAD
$102.14 CAD - $102.14 CAD
$102.14 CAD

Vendu en lots de : 5

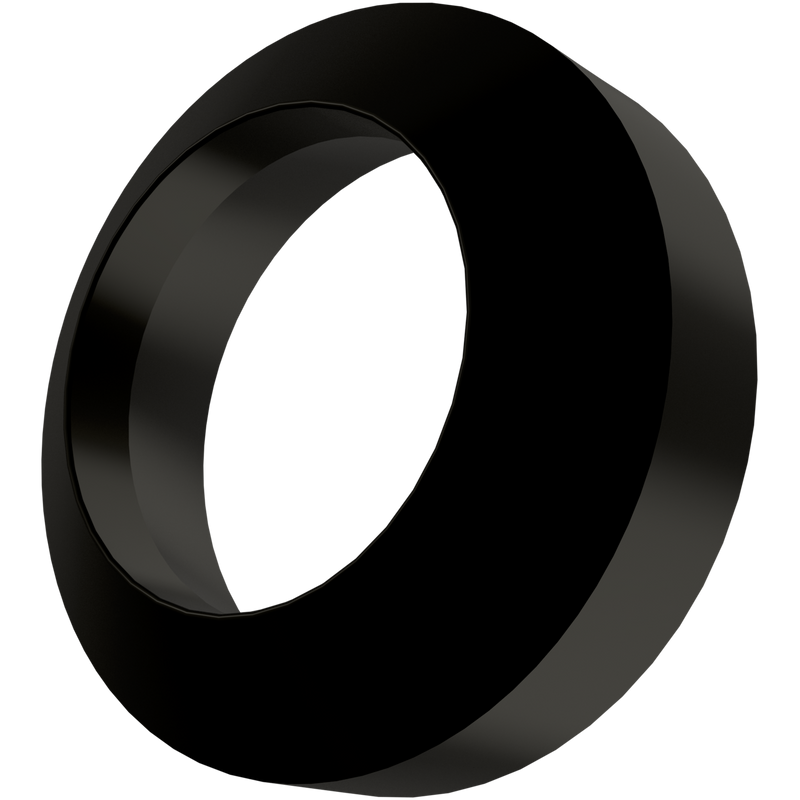

Bague d'écroutage d'un diamètre extérieur de 35 mm, d'un diamètre intérieur de 22 mm, de 12 mm d'épaisseur et d'un rayon de travail de 25,1 mm pour des diamètres de tube de 70 à 85 mm, en carbure WC-Co à gradient fonctionnel, revêtu T9335 MT-CVD, dans les plages de nuances ISO P20-P45 et M15-M40, pour l'ébavurage de l'intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR5-R25:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801188
Product FamilyRSP

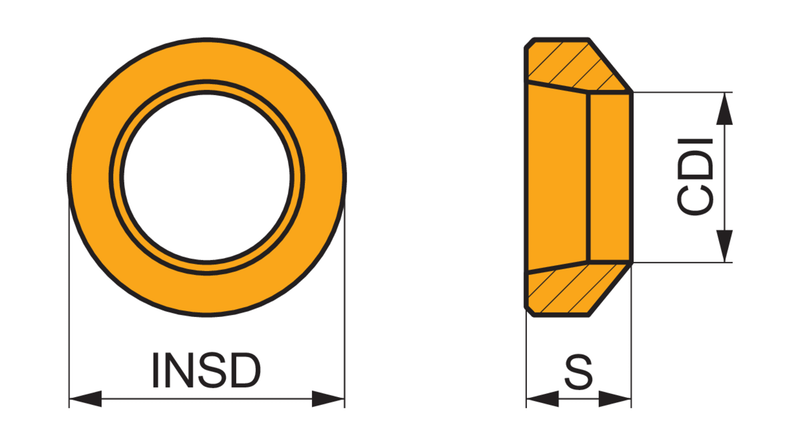

Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)1.378"
Inscribed Circle Dia. — mm (IC)35.0 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number6801188
EAN3603602994967
File Type Download
PSR5-R25:T9335 — Line Drawing PDF Download
