PSR0-R5,5:T9335
PSR0-R5,5:T9335

PSR0-R5,5:T9335

UGC DOR6801196
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.43 CAD - $37.43 CAD
$37.43 CAD
$37.43 CAD - $37.43 CAD
$37.43 CAD

Vendu en lots de : 10

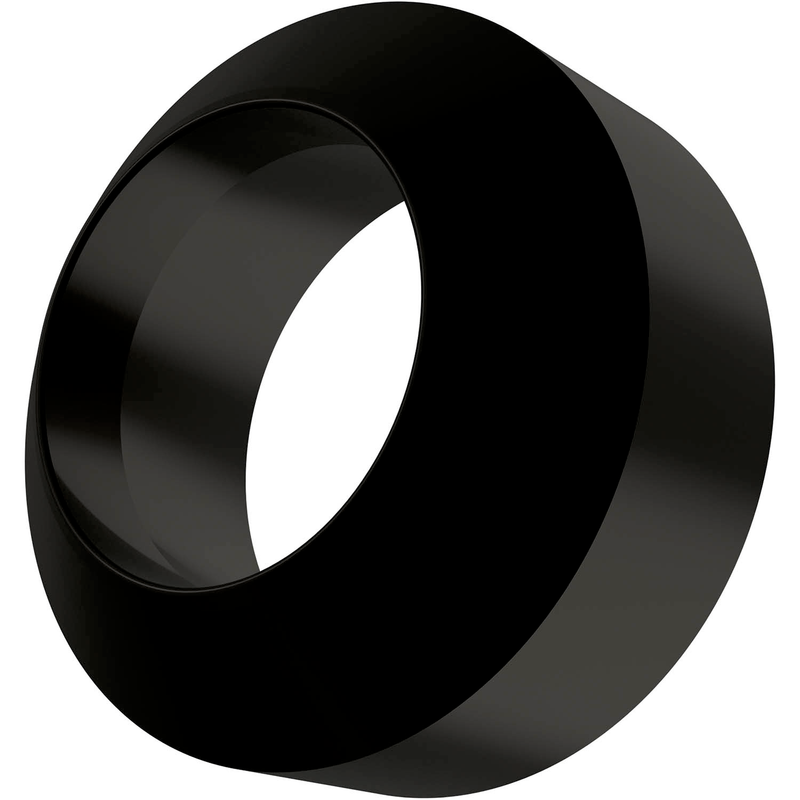

Bague d'écroutage de diamètre extérieur de 8 mm, de diamètre intérieur de 5 mm, de 4 mm d'épaisseur et d'un rayon de travail de 5,7 mm pour des diamètres de tube de 16 à 20 mm, en carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD T9335, dans les plages de grades ISO P20-P45 et M15-M40, pour l'ébavurage intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR0-R5,5:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801196
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.315"
Inscribed Circle Dia. — mm (IC)8.0 mm
Insert Thickness — in (S)0.157"
Insert Thickness — mm (S)4.0 mm
Tool Information
Reference Numbers
EDP Number6801196
EAN3603602996046
File Type Download
PSR0-R5,5:T9335 — Line Drawing PDF Download
