PSR1-R9:T9335
PSR1-R9:T9335

PSR1-R9:T9335

UGC DOR6801203
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.93 CAD - $39.93 CAD
$39.93 CAD
$39.93 CAD - $39.93 CAD
$39.93 CAD

Vendu en lots de : 10

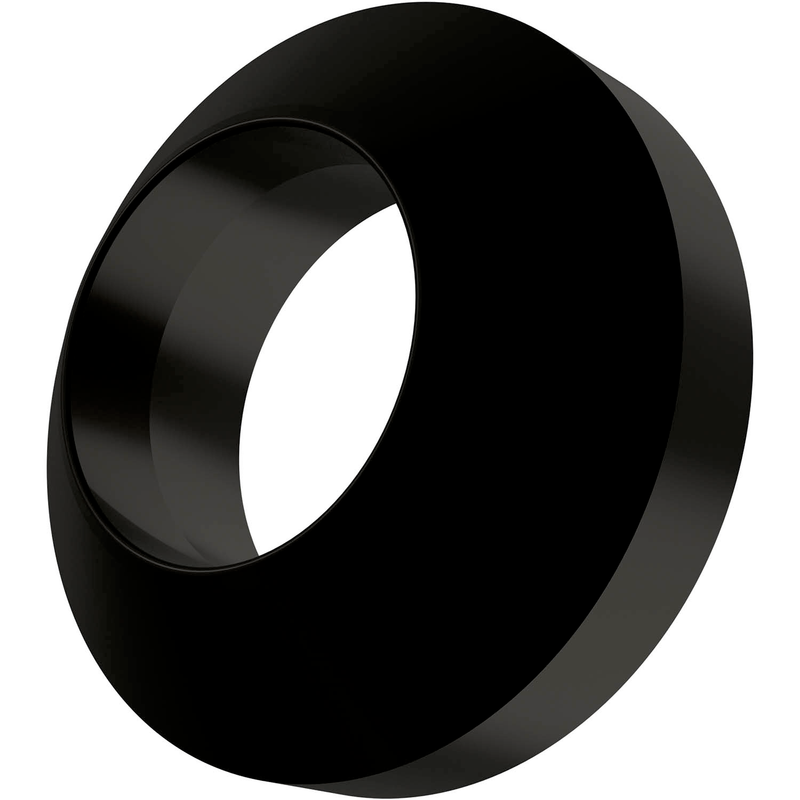

Anneau d'ébarbage d'un diamètre extérieur de 13 mm, d'un diamètre intérieur de 9 mm, d'une épaisseur de 5 mm et d'un rayon de travail de 9,1 mm pour des diamètres de tube de 24 à 26 mm, en carbure WC-Co à gradient fonctionnel revêtu MT-CVD T9335, dans les classes ISO P20-P45 et M15-M40, pour l'ébavurage intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR1-R9:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801203
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.512"
Inscribed Circle Dia. — mm (IC)13.0 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Tool Information
Reference Numbers
EDP Number6801203
EAN3603602996114
File Type Download
PSR1-R9:T9335 — Line Drawing PDF Download
