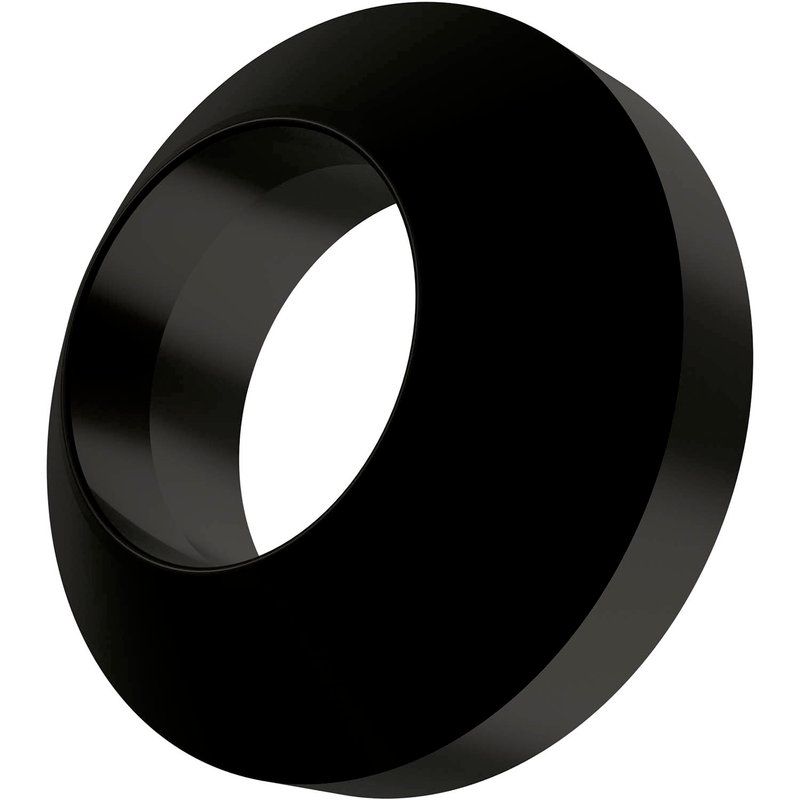

PSR3-R14:T9335
PSR3-R14:T9335

PSR3-R14:T9335

UGC DOR6801208
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.79 CAD - $52.79 CAD
$52.79 CAD
$52.79 CAD - $52.79 CAD
$52.79 CAD

Vendu en lots de : 10

Bague d'écroutage d'un diamètre extérieur de 22 mm, d'un diamètre intérieur de 12 mm, d'une épaisseur de 10 mm et d'un rayon de travail de 13,7 mm pour des diamètres de tube de 32 à 41 mm, en carbure WC-Co à gradient fonctionnel avec revêtement T9335 MT-CVD dans les classes ISO P20-P45 et M15-M40 pour l'ébavurage intérieur de tubes et de tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR3-R14:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801208
Product FamilyRSP

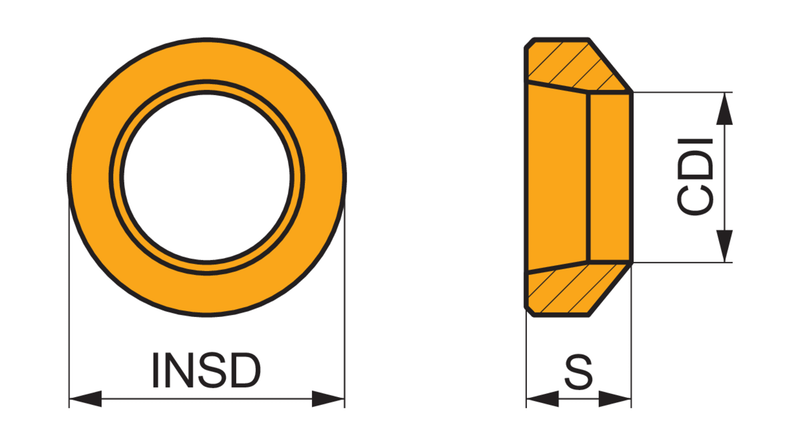

Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.866"
Inscribed Circle Dia. — mm (IC)22.0 mm
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.0 mm
Tool Information
Reference Numbers
EDP Number6801208
EAN3603602996169
File Type Download
PSR3-R14:T9335 — Line Drawing PDF Download
