PSR5-R28:T9335
PSR5-R28:T9335

PSR5-R28:T9335

UGC DOR6801211
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.14 CAD - $102.14 CAD
$102.14 CAD
$102.14 CAD - $102.14 CAD
$102.14 CAD

Vendu en lots de : 5

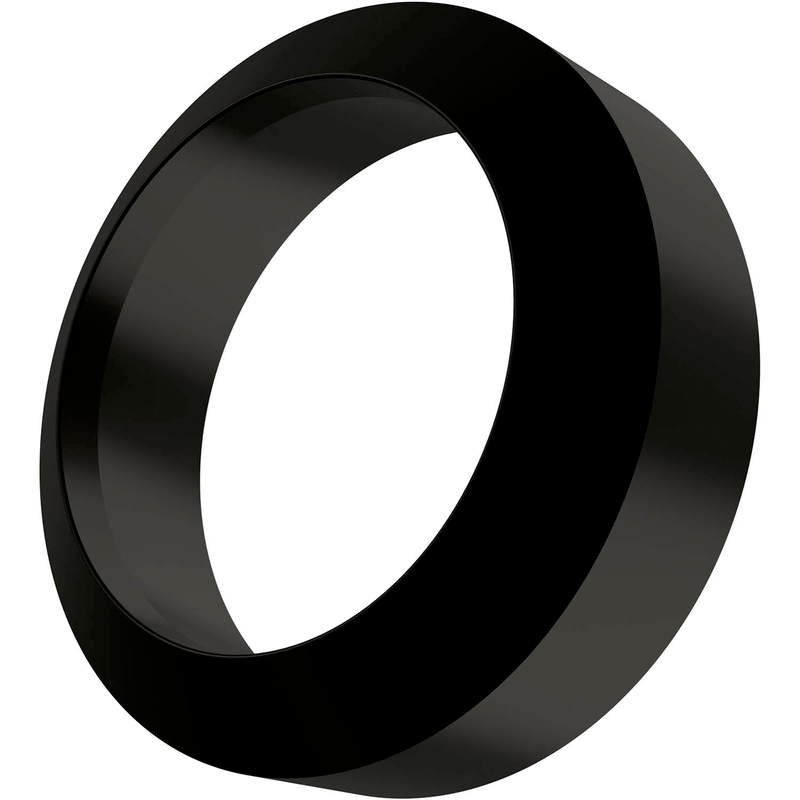

Bague d'écroutage de diamètre extérieur de 35mm, diamètre intérieur de 25mm, épaisseur de 12mm et rayon de travail de 28,5mm pour des diamètres de tubes de 85 à 100mm, en carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD T9335, dans les plages de grades ISO P20-P45 et M15-M40 pour l'ébavurage intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR5-R28:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801211
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)1.378"
Inscribed Circle Dia. — mm (IC)35.0 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number6801211
EAN3603602996190
File Type Download
PSR5-R28:T9335 — Line Drawing PDF Download
