PSR6-R34:T9335
PSR6-R34:T9335

PSR6-R34:T9335

UGC DOR6801212
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$124.29 CAD - $124.29 CAD
$124.29 CAD
$124.29 CAD - $124.29 CAD
$124.29 CAD

Vendu en lots de : 5

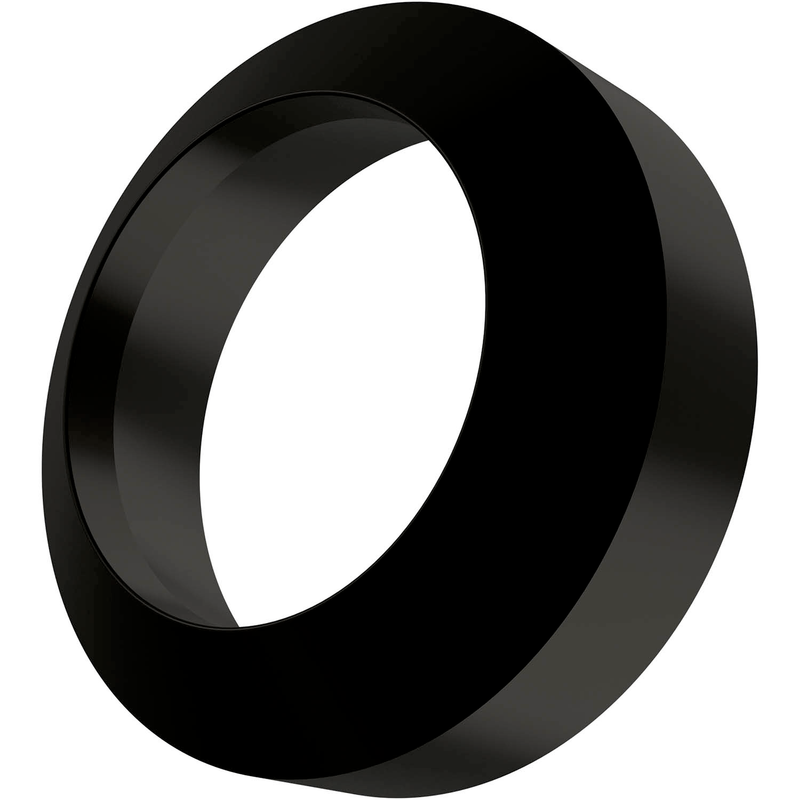

Bague d’ébarbage d’un diamètre extérieur de 45 mm, d’un diamètre intérieur de 30 mm, de 15 mm d’épaisseur et d’un rayon de travail de 34,2 mm pour des diamètres de tubes de 100 à 130 mm, en carbure WC-Co à gradient fonctionnel et revêtement MT-CVD T9335, dans les plages de nuances ISO P20-P45 et M15-M40 pour l’ébavurage intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR6-R34:T9335
GradeT9335
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6801212
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)1.772"
Inscribed Circle Dia. — mm (IC)45.0 mm
Insert Thickness — in (S)0.591"
Insert Thickness — mm (S)15.0 mm
Tool Information
Reference Numbers
EDP Number6801212
EAN3603602996206
File Type Download
PSR6-R34:T9335 — Line Drawing PDF Download
