PSR7-R39:T9335
PSR7-R39:T9335

PSR7-R39:T9335

UGC DOR6801213
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$138.57 CAD - $138.57 CAD
$138.57 CAD
$138.57 CAD - $138.57 CAD
$138.57 CAD

Vendu en lots de : 5

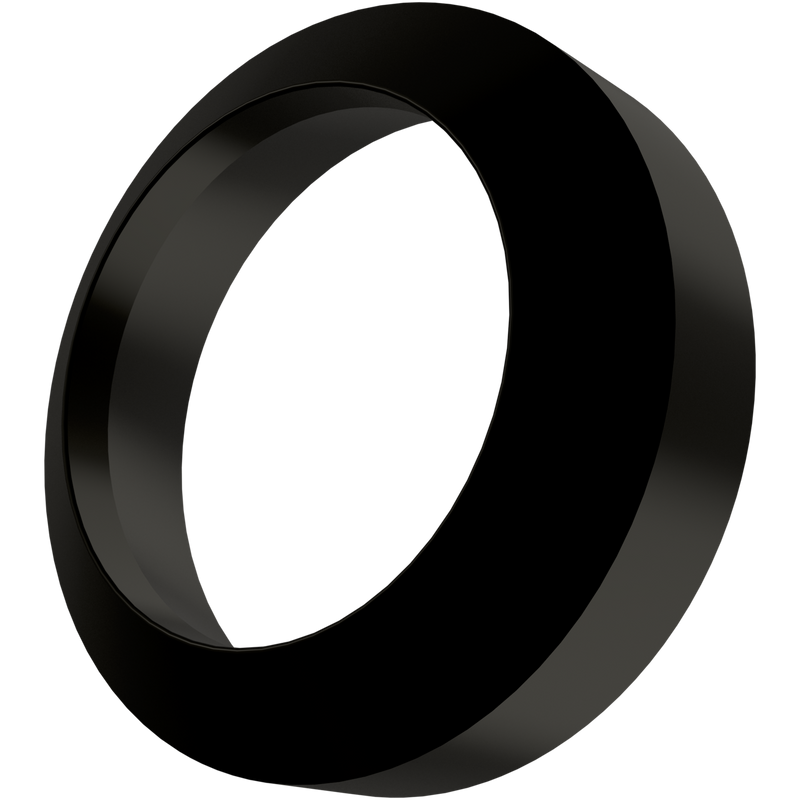

Bague de dressage d'un diamètre extérieur de 50 mm, d'un diamètre intérieur de 35 mm, de 15 mm d'épaisseur et d'un rayon de travail de 39,5 mm pour des diamètres de tube de 125 à 140 mm, en carbure WC-Co à gradient fonctionnel revêtu T9335 MT-CVD dans les plages de nuances ISO P20-P45 et M15-M40 pour l'ébavurage intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR7-R39:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801213
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)1.969"
Inscribed Circle Dia. — mm (IC)50.0 mm
Insert Thickness — in (S)0.591"
Insert Thickness — mm (S)15.0 mm
Tool Information
Reference Numbers
EDP Number6801213
EAN3603602996213
File Type Download
PSR7-R39:T9335 — Line Drawing PDF Download
