PSR8-R46:T9335
PSR8-R46:T9335

PSR8-R46:T9335

UGC DOR6801214
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.14 CAD - $177.14 CAD
$177.14 CAD
$177.14 CAD - $177.14 CAD
$177.14 CAD

Vendu en lots de : 5

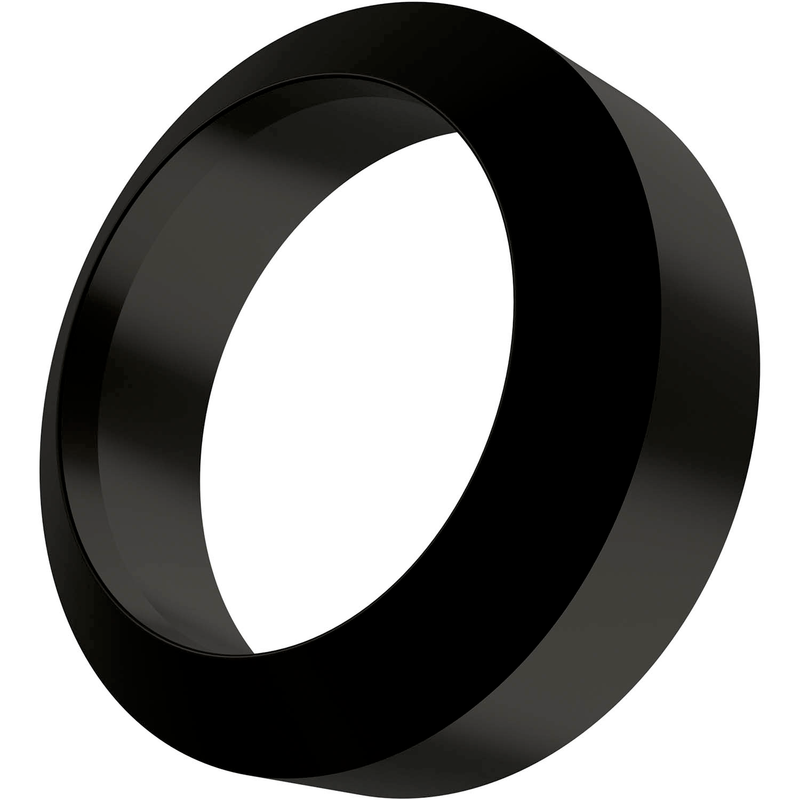

Bague d'écharpage d'un diamètre extérieur de 55 mm, d'un diamètre intérieur de 40 mm, d'une épaisseur de 18 mm et d'un rayon de travail de 45,6 mm pour des diamètres de tube de 150 à 400 mm, carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD T9335, dans les plages de nuances ISO P20-P45 et M15-M40 pour l'ébavurage intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR8-R46:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801214
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)2.165"
Inscribed Circle Dia. — mm (IC)55.0 mm
Insert Thickness — in (S)0.709"
Insert Thickness — mm (S)18.0 mm
Tool Information
Reference Numbers
EDP Number6801214
EAN3603602996220
File Type Download
PSR8-R46:T9335 — Line Drawing PDF Download
