SNMX 15-R00:T9335

SNMX 15-R00:T9335

UGC DOR6801215
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.29 CAD - $26.29 CAD
$26.29 CAD
$26.29 CAD - $26.29 CAD
$26.29 CAD

Vendu en lots de : 10

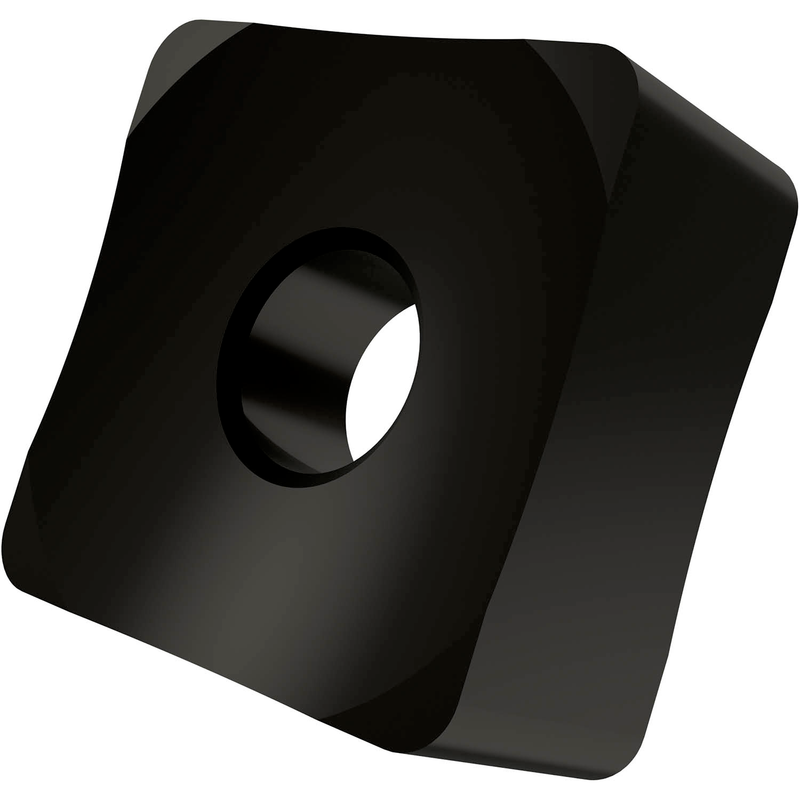

Plaquette de délignage double face, carrée avec une arête de coupe principale de 15,875mm, 8,15mm d'épaisseur, en carbure WC-Co à gradient fonctionnel, revêtu MT-CVD, nuance ISO P20-P45/M15-M40 et S15-S25 pour l'ébavurage extérieur de tubes carrés et rectangulaires en acier, acier inoxydable et super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 15-R00:T9335
GradeT9335
Chipbreaker (CBMD)Avec brise-copeaux -aucune désignation
Product Number6801215
Product FamilySNMX 15-R
Insert Geometry
Insert DesignSNMX 15-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.321"
Insert Thickness — mm (S)8.15 mm
Tool Information
Reference Numbers
EDP Number6801215
EAN3603602996237
