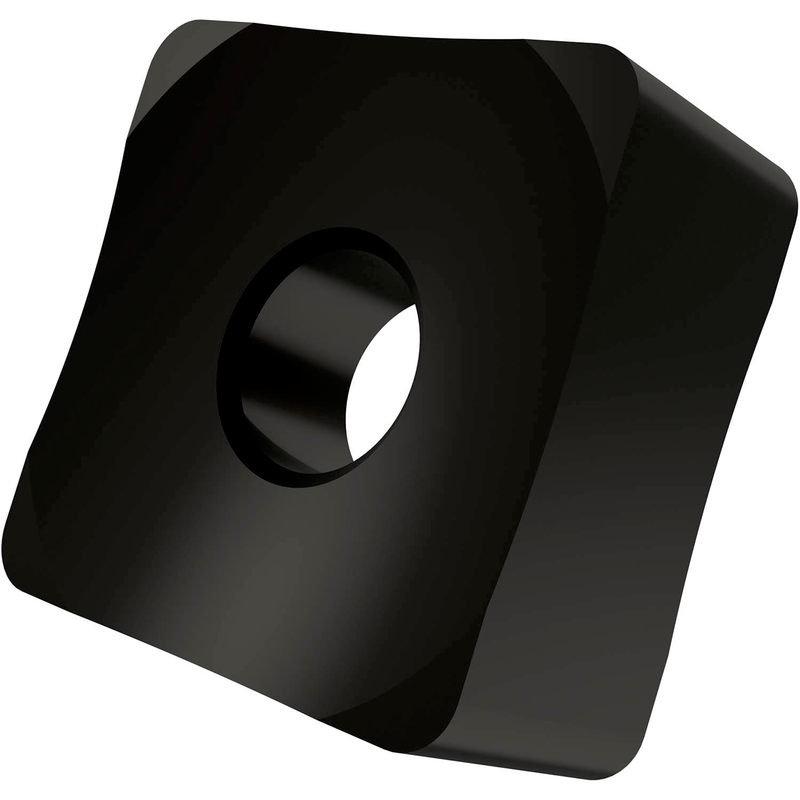

SNMX 19-R00:T9335
SNMX 19-R00:T9335

SNMX 19-R00:T9335

UGC DOR6801237
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.21 CAD - $44.21 CAD
$44.21 CAD
$44.21 CAD - $44.21 CAD
$44.21 CAD

Vendu en lots de : 10

Plaquette d'écharpage double face, carrée avec une longueur d'arête de coupe principale de 19,05 mm, 8,15 mm d'épaisseur, revêtement MT-CVD T9335 en carbure WC-Co à gradient fonctionnel, dans les plages de nuances ISO P20-P45/M15-M40 et S15-S25 pour l'ébavurage extérieur de tubes carrés et rectangulaires en acier, acier inoxydable et superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 19-R00:T9335
GradeT9335
Chipbreaker (CBMD)Avec brise-copeaux - aucune désignation
Product Number6801237
Product FamilySNMX 19-R

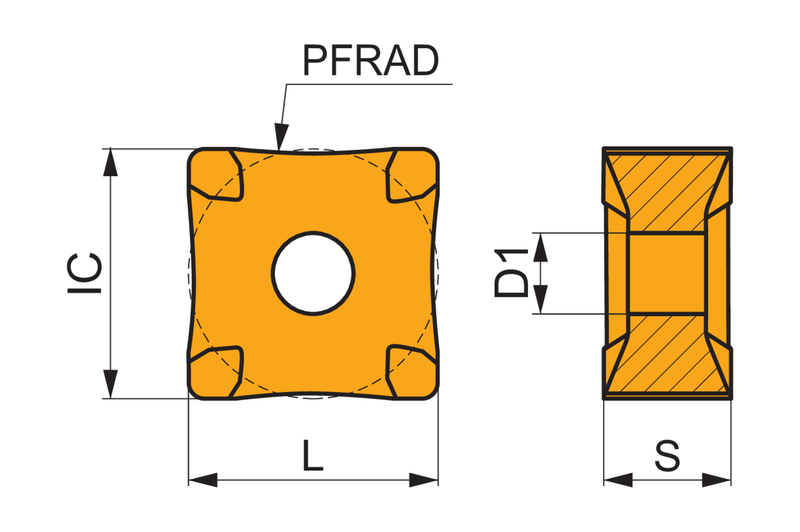

Insert Geometry
Insert DesignSNMX 19-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.321"
Insert Thickness — mm (S)8.15 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number6801237
EAN3603602996459
File Type Download
SNMX 19-R00:T9335 — Line Drawing PDF Download
