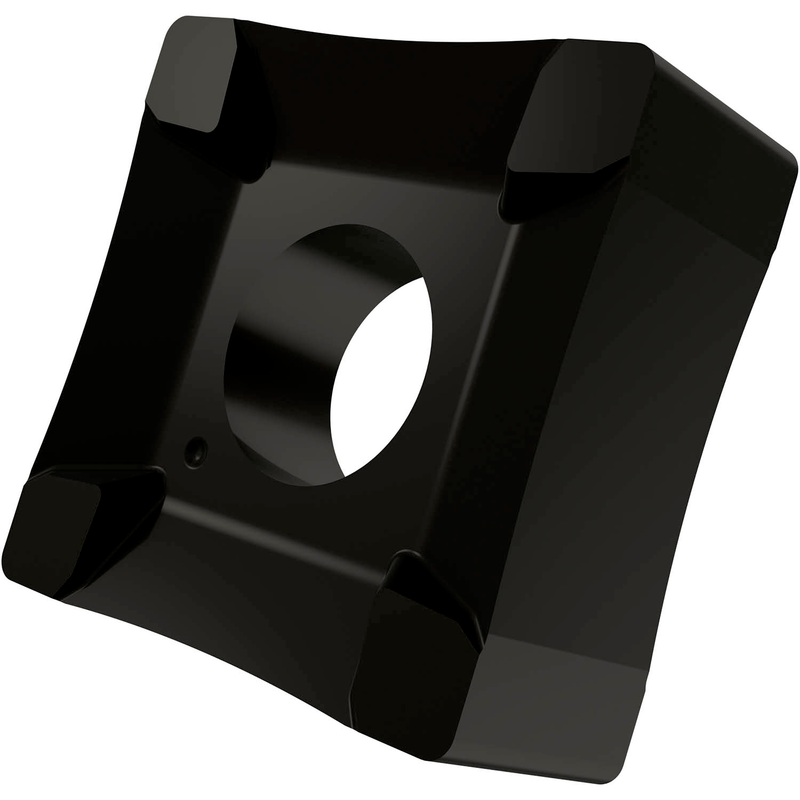

SNMX 19-R90:T9335
SNMX 19-R90:T9335

SNMX 19-R90:T9335

UGC DOR6801245
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.21 CAD - $44.21 CAD
$44.21 CAD
$44.21 CAD - $44.21 CAD
$44.21 CAD

Vendu en lots de : 10

Plaquette d'écroutage double face, carrée, d'une longueur d'arête de coupe principale de 19,05 mm, d'une épaisseur de 8,15 mm et d'un rayon de travail de 90 mm pour des diamètres de tube de 104 à 131 mm, en carbure WC-Co à gradient fonctionnel et revêtement MT-CVD T9335, dans les plages de nuances ISO P20-P45/M15-M40 et S15-S25 pour l'ébavurage extérieur des tubes et tuyaux en acier, en acier inoxydable et en superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 19-R90:T9335
GradeT9335
Chipbreaker (CBMD)Avec brise-copeaux -aucune désignation
Product Number6801245
Product FamilySNMX 19-R

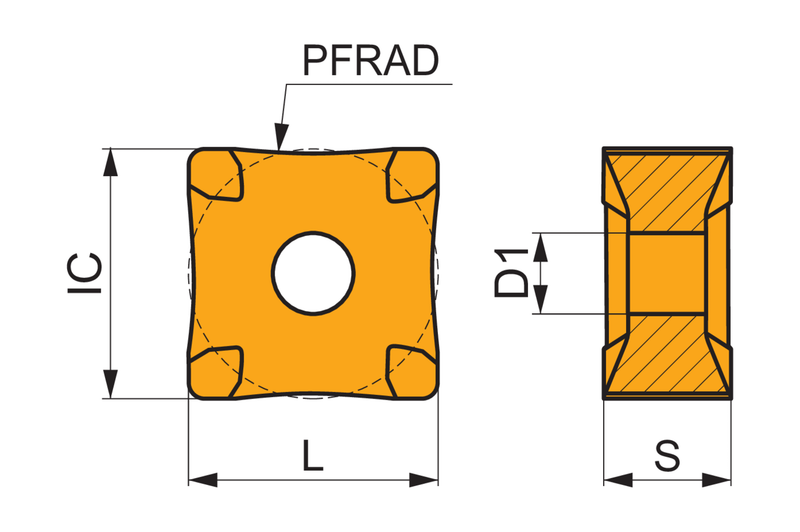

Insert Geometry
Insert DesignSNMX 19-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.321"
Insert Thickness — mm (S)8.15 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number6801245
EAN3603602996534
File Type Download
SNMX 19-R90:T9335 — Line Drawing PDF Download
