SNMA 250924-R00:T9335

SNMA 250924-R00:T9335

UGC DOR6801267
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$97.14 CAD - $97.14 CAD
$97.14 CAD
$97.14 CAD - $97.14 CAD
$97.14 CAD

Vendu en lots de : 10

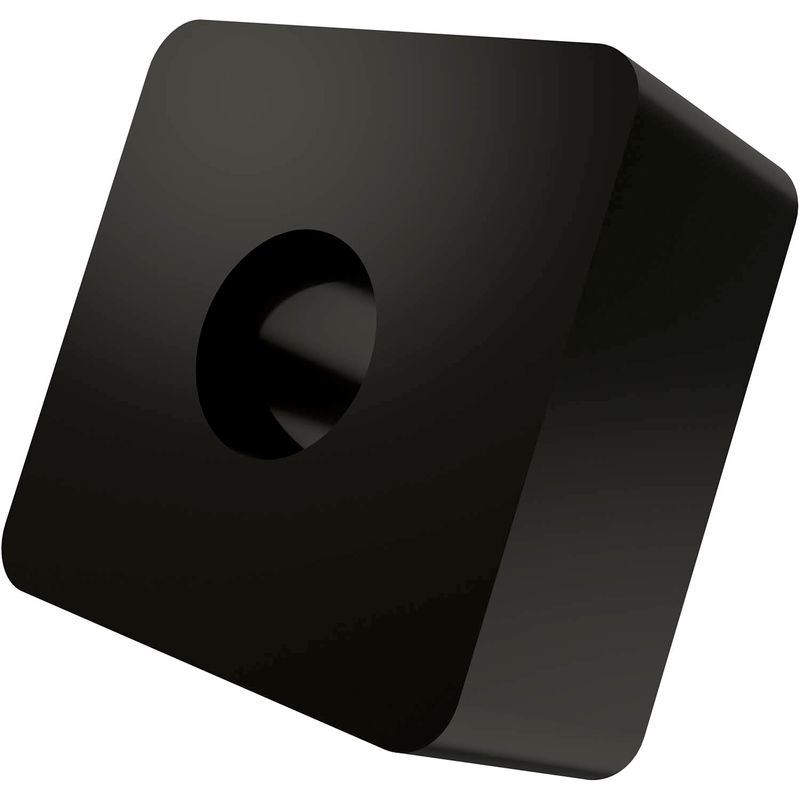

Plaquette de délignage double face, carrée avec une longueur d'arête de coupe principale de 25,4 mm, épaisseur de 9,52 mm, en carbure WC-Co à gradient fonctionnel et revêtement MT-CVD de qualité ISO P20-P45/M15-M40 et S15-S25 pour l'ébavurage extérieur de tubes carrés et rectangulaires en acier, acier inoxydable et superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 250924-R00:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801267
Product FamilySNMA 2509-R
Insert Geometry
Insert DesignSNMA 2509-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.52 mm
Tool Information
Reference Numbers
EDP Number6801267
EAN3603602996756
