SBKX 2207DZER:M8326
SBKX 2207DZER:M8326

SBKX 2207DZER:M8326

UGC DOR6801307
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.93 CAD - $67.93 CAD
$67.93 CAD
$67.93 CAD - $67.93 CAD
$67.93 CAD

Vendu en lots de : 5

Plaquette de fraisage simple face SBKX 2207, carrée pour une profondeur de coupe maximale de 15 mm, avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO-K avec arêtes de coupe arrondies, WC-Co carbure revêtu PVD M8326 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier avec les fraises à surfacer FSB22X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SBKX 2207DZER:M8326
GradeM8326
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801307
Product FamilySBKX 22
Insert Geometry
Insert DesignSBKX
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.866"
Inscribed Circle Dia. — mm (IC)22.0 mm
Insert Thickness — in (S)0.315"
Insert Thickness — mm (S)8.0 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number6801307
EAN3603602996886
File Type Download

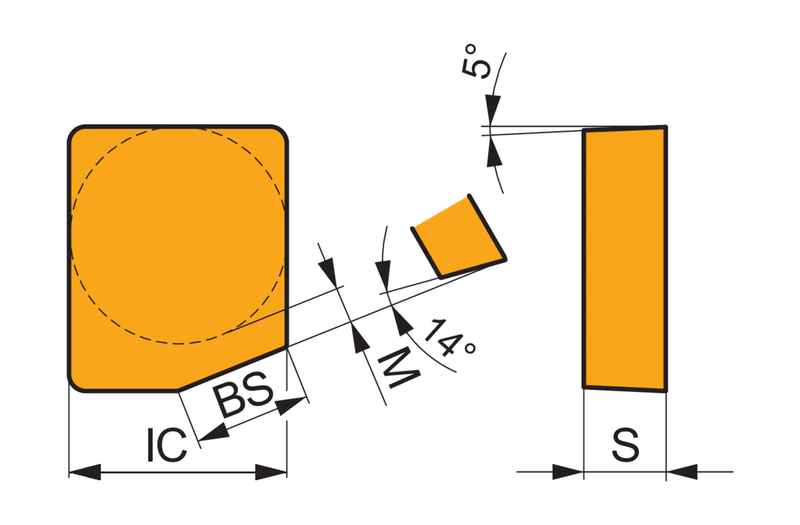

SBKX 2207DZER:M8326 — Line Drawing PDF Download
