SBMR 2207DZSR-R:M8326
SBMR 2207DZSR-R:M8326

SBMR 2207DZSR-R:M8326

UGC DOR6801310
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.43 CAD - $59.43 CAD
$59.43 CAD
$59.43 CAD - $59.43 CAD
$59.43 CAD

Vendu en lots de : 10

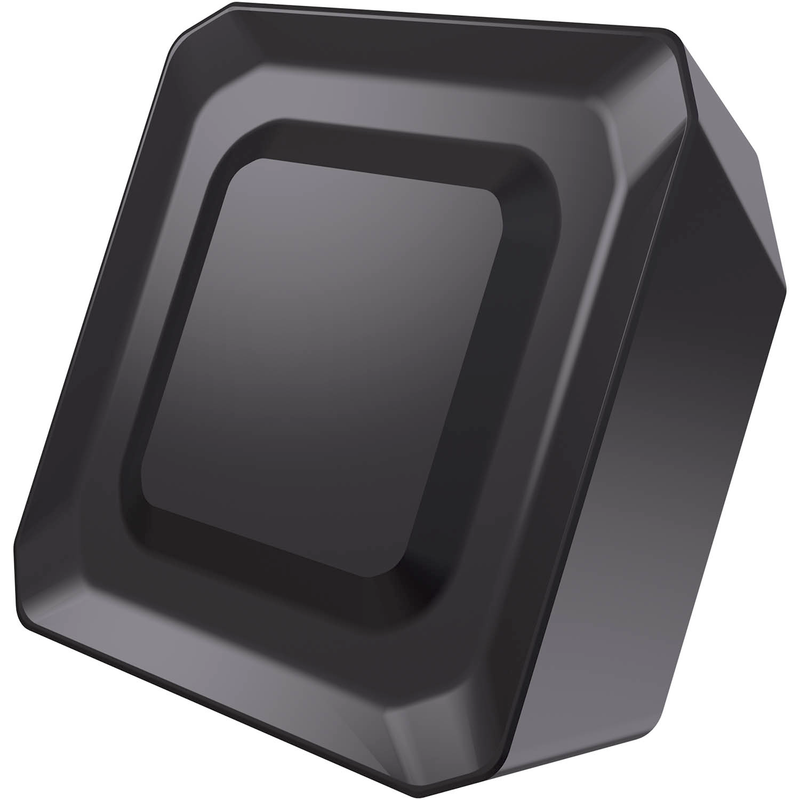

Plaquette de fraisage simple face SBMR 2207 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 15 mm, avec rayon de coin de ", une précision de positionnement selon la classe de tolérance ISO-M et géométrie R avec arêtes de coupe et facette arrondies, carbure WC-Co revêtu PVD M8326 dans la gamme de nuance ISO P20-P40 pour l'usinage de l'acier avec les fraises à surfacer FSB22X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SBMR 2207DZSR-R:M8326
GradeM8326
Chipbreaker (CBMD)R
Product Number6801310
Product FamilySBMR 22
Insert Geometry
Insert DesignCRSF
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.866"
Inscribed Circle Dia. — mm (IC)22.0 mm
Insert Thickness — in (S)0.315"
Insert Thickness — mm (S)8.0 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number6801310
EAN3603602996916
File Type Download

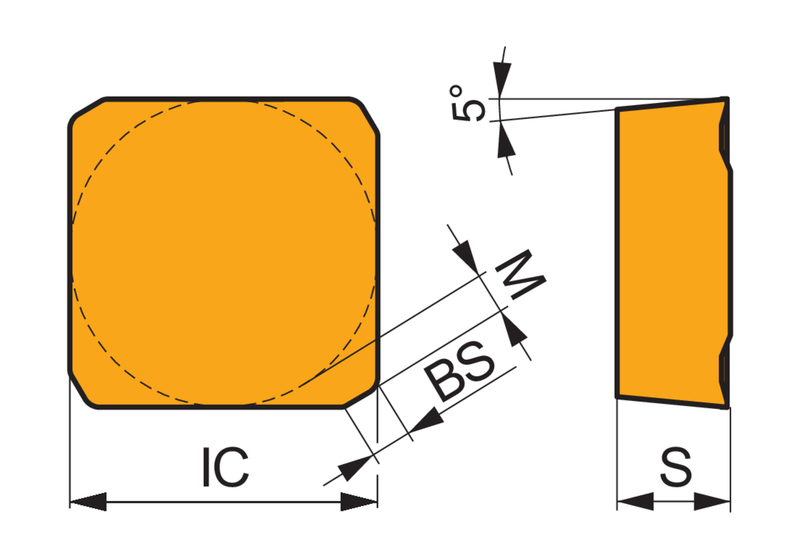

SBMR 2207DZSR-R:M8326 — Line Drawing PDF Download
