SPGN 84DZSR:M8346
SPGN 84DZSR:M8346

SPGN 84DZSR:M8346

UGC DOR6801313
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.21 CAD - $67.21 CAD
$67.21 CAD
$67.21 CAD - $67.21 CAD
$67.21 CAD

Vendu en lots de : 10

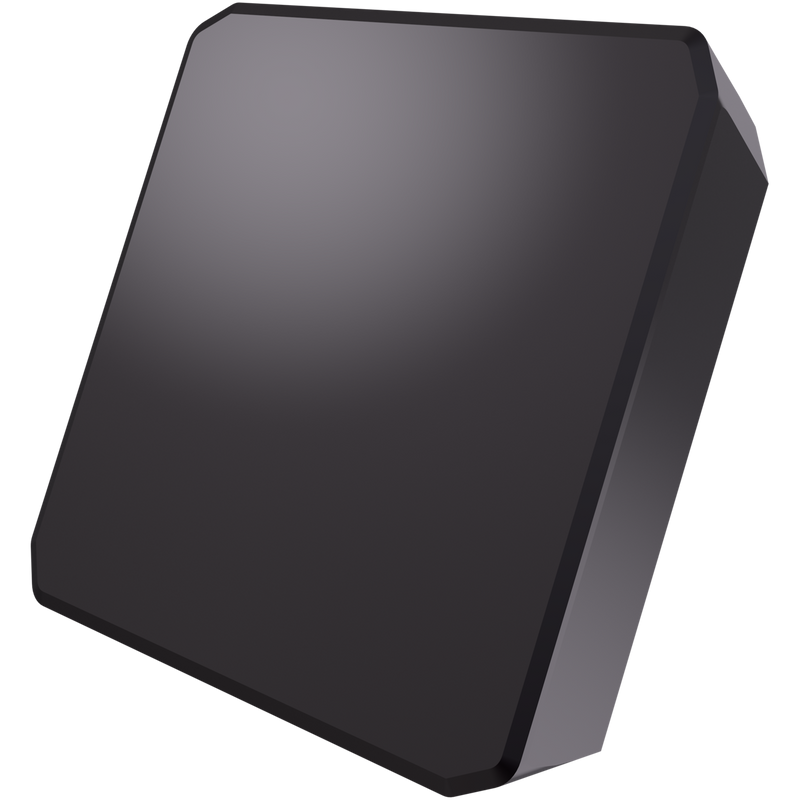

Plaquette de fraisage simple face SPGN 2506 avec une surface de coupe plane, carrée, pour une profondeur de coupe maximale de 18 mm, avec un rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-G avec des arêtes de coupe et une facette arrondies, en carbure WC-Co revêtu PVD M8346

For more information about this product, click here

Identification
Ordering Code (ANSI)SPGN 84DZSR:M8346
Product Name (ISO)SPGN 2506DZSR:M8346
GradeM8346
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801313
Product FamilySPGN 25 DZ

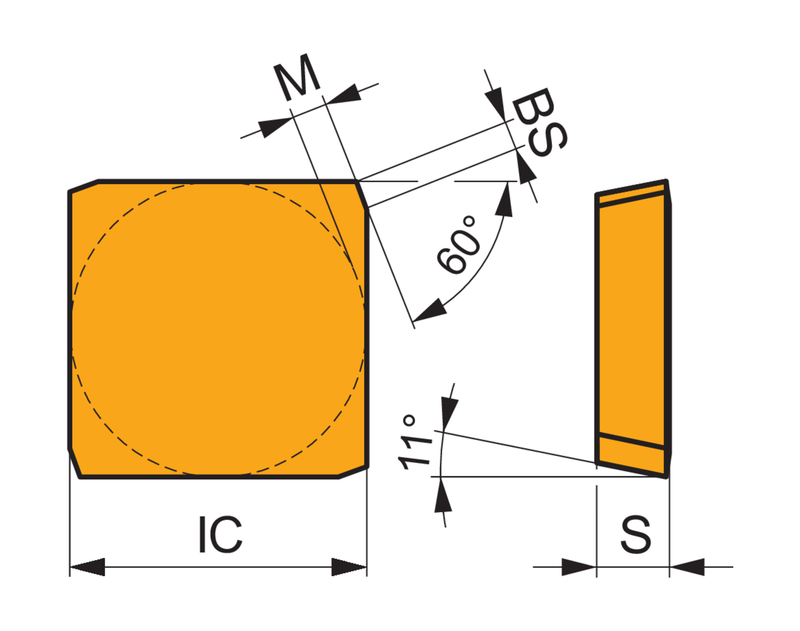

Insert Geometry
Insert DesignPGNS
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.984"
Inscribed Circle Dia. — mm (IC)25.0 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.709"
Depth of Cut Max — mm (APMX)18.0 mm
Tool Information
Reference Numbers
EDP Number6801313
EAN3603602996947
File Type Download
SPGN 84DZSR:M8346 — Line Drawing PDF Download
