SPU 844S:M8326
SPU 844S:M8326

SPU 844S:M8326

UGC DOR6801314
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.86 CAD - $53.86 CAD
$53.86 CAD
$53.86 CAD - $53.86 CAD
$53.86 CAD

Vendu en lots de : 10

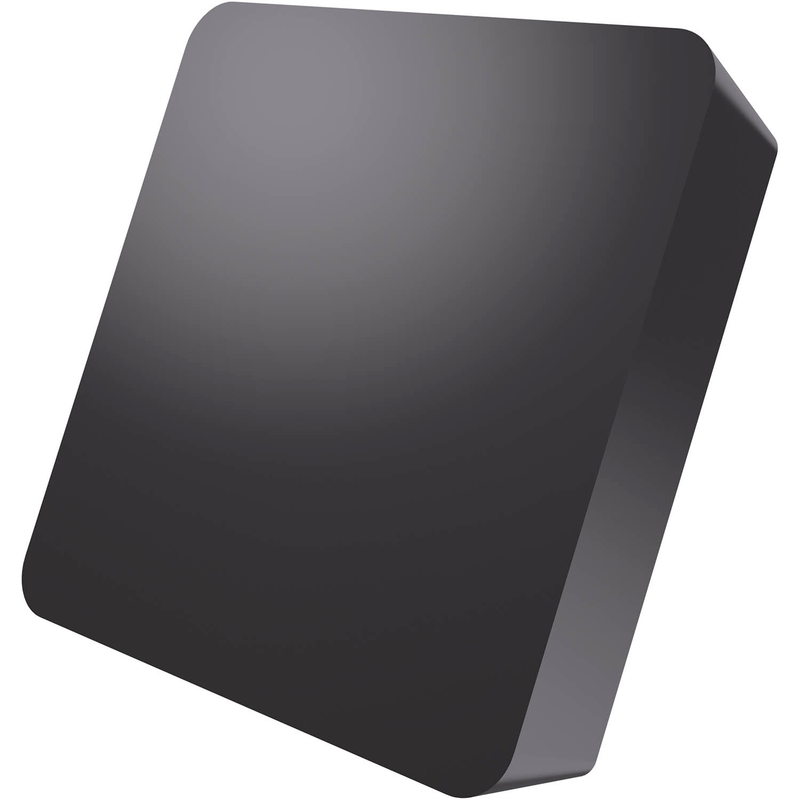

Plaquette de fraisage simple face SPUN 2506 avec une surface de coupe plate, carrée pour une profondeur de coupe maximale de 18 mm, avec un rayon de coin de 1,6 mm, une précision de positionnement selon la classe de tolérance ISO-U avec des arêtes de coupe arrondies et une facette, en carbure WC-Co revêtu PVD M8326

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 844S:M8326
Product Name (ISO)SPUN 250616S:M8326
GradeM8326
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801314
Product FamilyFILÉ

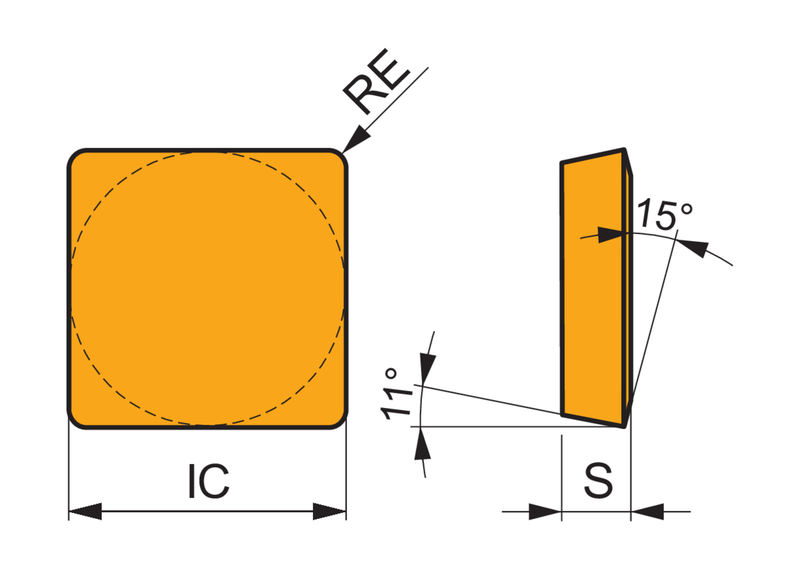

Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.709"
Depth of Cut Max — mm (APMX)18.0 mm
Tool Information
Reference Numbers
EDP Number6801314
EAN3603602996954
File Type Download
SPU 844S:M8326 — Line Drawing PDF Download
