SPU 845S:M8346
SPU 845S:M8346

SPU 845S:M8346

UGC DOR6801317
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.86 CAD - $53.86 CAD
$53.86 CAD
$53.86 CAD - $53.86 CAD
$53.86 CAD

Vendu en lots de : 10

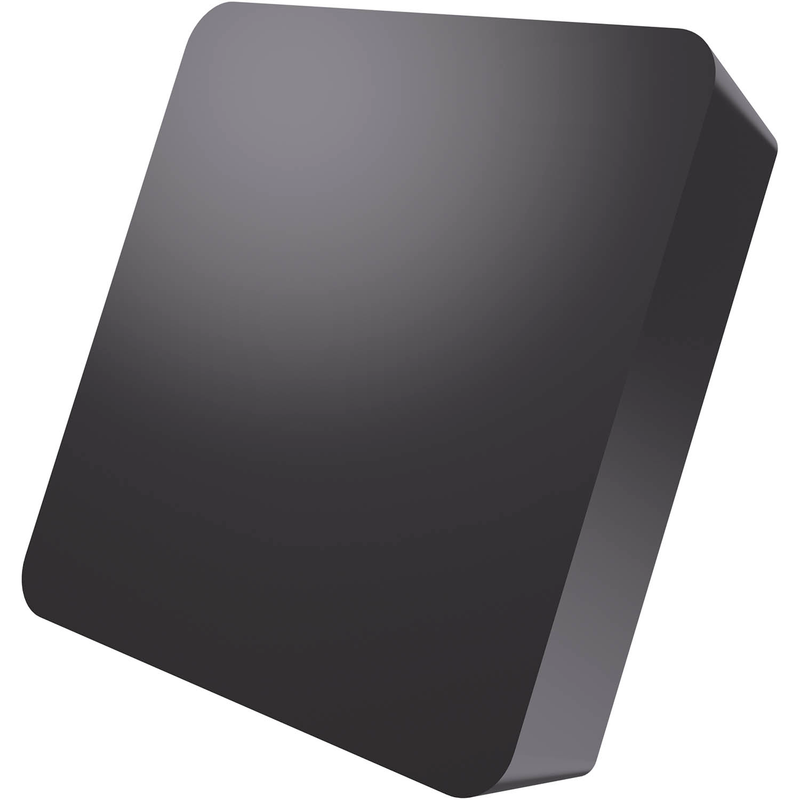

Plaquette de fraisage simple face SPUN 2506 avec une face de coupe plane, carrée pour une profondeur de coupe maximale de 18 mm, avec un rayon de coin de 2 mm, une précision d'indexage selon la classe de tolérance ISO-U avec des arêtes de coupe et une facette arrondies, en carbure WC-Co revêtu PVD M8346

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 845S:M8346
Product Name (ISO)FILÉ 250620S:M8346
GradeM8346
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6801317
Product FamilyFILÉ

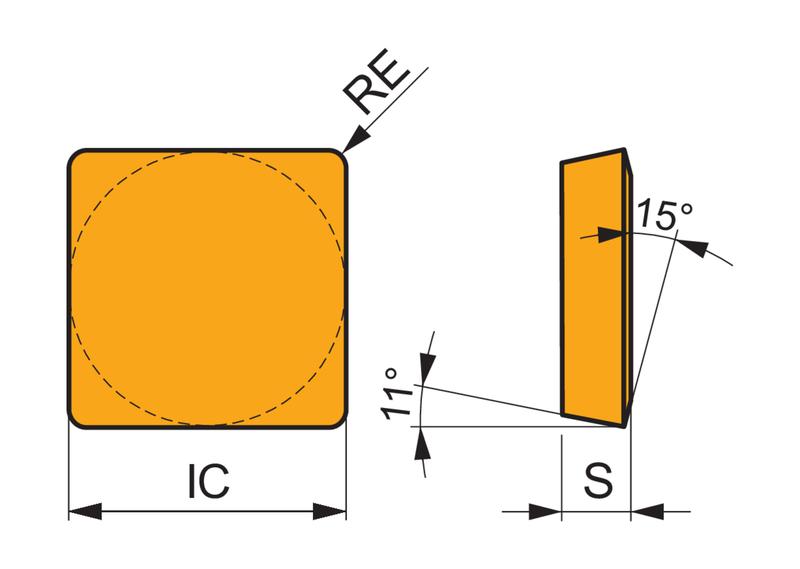

Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.709"
Depth of Cut Max — mm (APMX)18.0 mm
Tool Information
Reference Numbers
EDP Number6801317
EAN3603602996985
File Type Download
SPU 845S:M8346 — Line Drawing PDF Download
