SNHQ 1205AZEN:M8340
SNHQ 1205AZEN:M8340

SNHQ 1205AZEN:M8340

UGC DOR6803509
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.13 CAD - $30.13 CAD
$30.13 CAD
$30.13 CAD - $30.13 CAD
$30.13 CAD

Vendu en lots de : 10

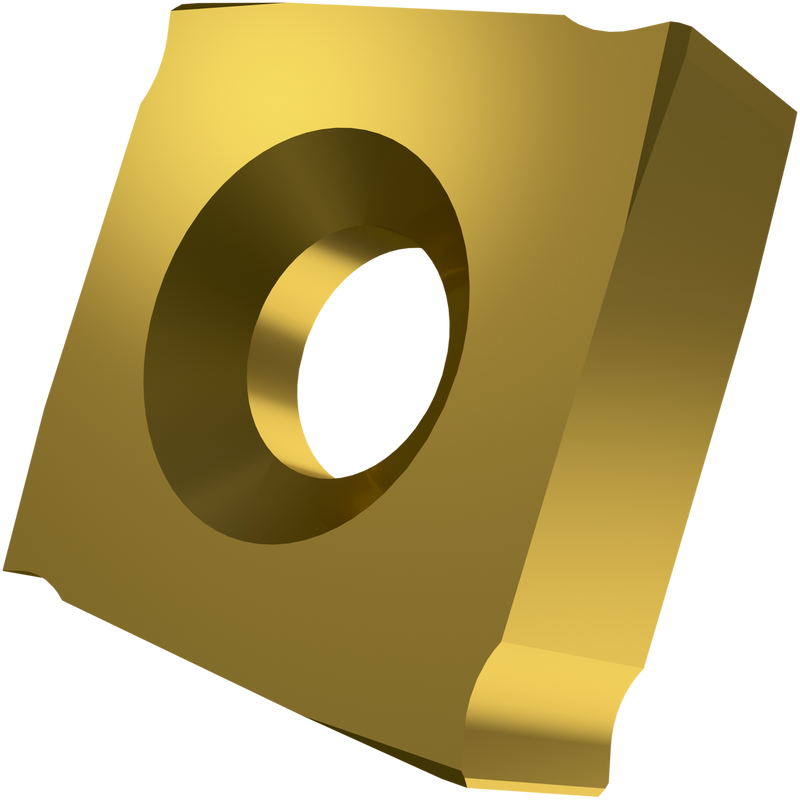

Plaquette de fraisage double face, pour une largeur de coupe de 0,3937 po avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8340, dans la gamme de nuances ISO P25-P50 pour l'usinage de l'acier avec les fraises à disque S90SN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNHQ 1205AZEN:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux -pas de désignation
Product Number6803509
Product FamilySNHQ AZ
Insert Geometry
Insert DesignSNHQ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Tool Information
Reference Numbers
EDP Number6803509
EAN3603602995445
File Type Download

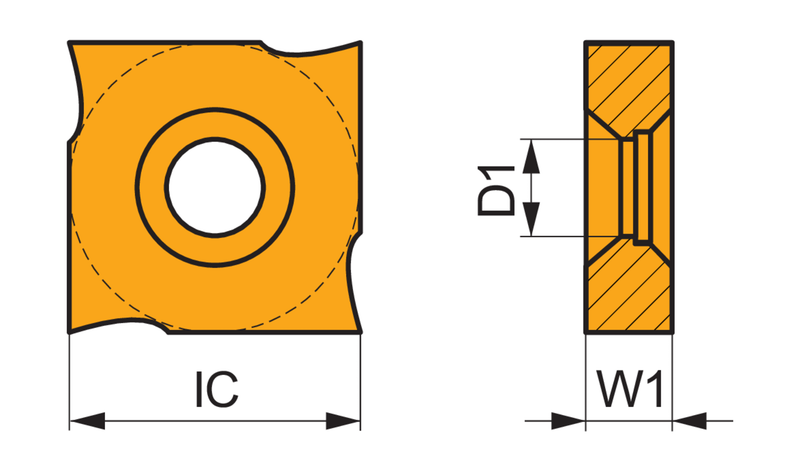

SNHQ 1205AZEN:M8340 — Line Drawing PDF Download
