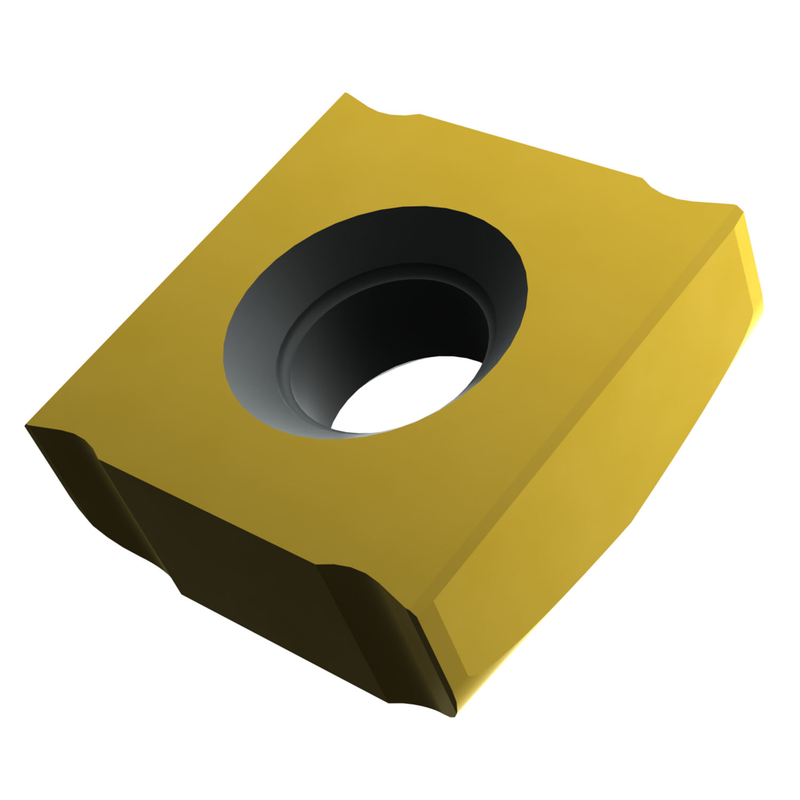

SNHQ 120705TRL:M8340
SNHQ 120705TRL:M8340

SNHQ 120705TRL:M8340

UGC DOR6803591
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.39 CAD - $36.39 CAD
$36.39 CAD
$36.39 CAD - $36.39 CAD
$36.39 CAD

Vendu en lots de : 10

Plaquette de fraisage de disque unilatérale, pour une largeur de coupe de 12 mm avec un rayon de coin de 0,5 mm et des arêtes de coupe à facette, carbure WC-Co à grains fins revêtu PVD M8340 dans la plage de nuances ISO P25-P50 pour l'usinage de l'acier avec les fraises à disque S90SN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNHQ 120705TRL:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux -pas de désignation
Product Number6803591
Product FamilyQSNH RLT
Insert Geometry
Insert DesignSNHQ
Insert Shape Code (SC)S - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Tool Information
Reference Numbers
EDP Number6803591
EAN3603602995469
File Type Download

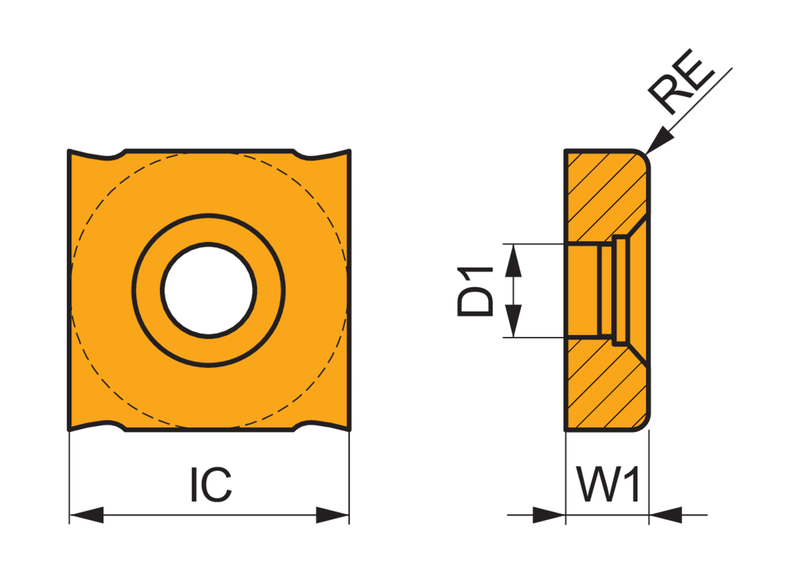

SNHQ 120705TRL:M8340 — Line Drawing PDF Download
