TPKR 32PDSR:M8340
TPKR 32PDSR:M8340

TPKR 32PDSR:M8340

UGC DOR6803610
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.21 CAD - $13.21 CAD
$13.21 CAD
$13.21 CAD - $13.21 CAD
$13.21 CAD

Vendu en lots de : 10

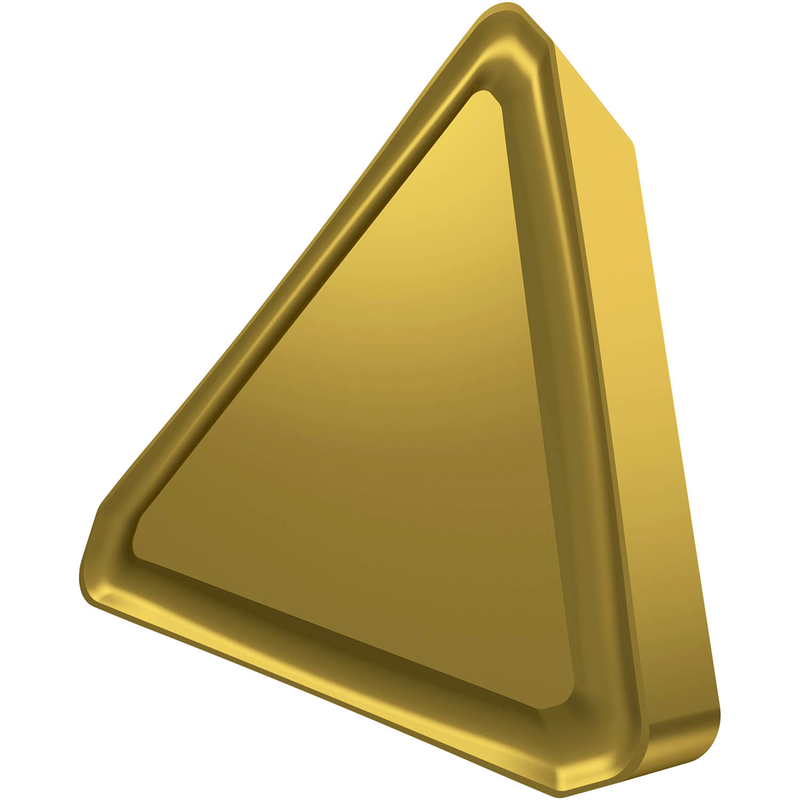

Plaquette de fraisage simple face TPKR 1603 avec brise-copeaux, triangulaire pour une profondeur de coupe maximale de 0,4724", avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO-K avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co à grain fin revêtu PVD M8340 dans la gamme de nuances ISO P25-P50 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKR 32PDSR:M8340
Product Name (ISO)TPKR 1603PDSR:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux - aucune désignation
Product Number6803610
Product FamilyTPCR

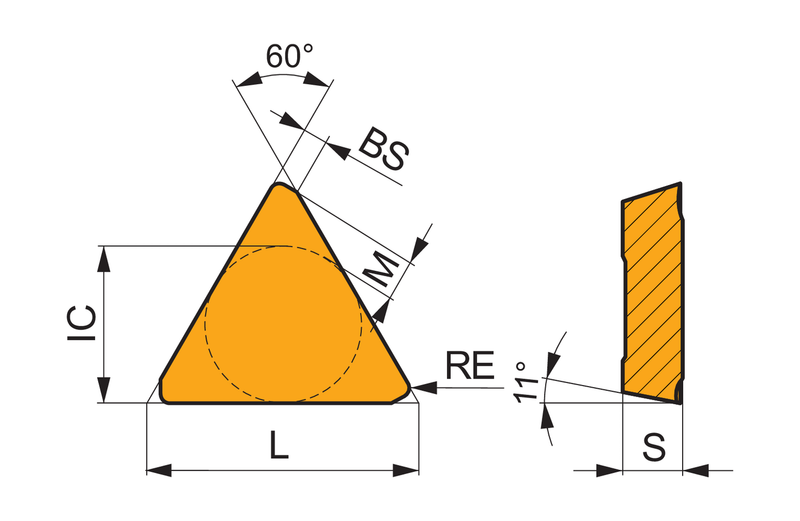

Insert Geometry
Insert DesignTaux de prise en charge du risque
Insert Shape Code (SC)T - angle inclus triangulaire de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6803610
EAN3603602995650
File Type Download
TPKR 32PDSR:M8340 — Line Drawing PDF Download
