KTP-CFNR 1911

KTP-CFNR 1911

UGC DOR6803672
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

Cartouche modulaire d'outil de tournage à levier pour le serrage d'un insert négatif en losange à 80° avec un diamètre de cercle inscrit de 19,05 mm, d'une épaisseur de 11 mm (désignation ISO CNMX 1911.. ), pour l'usinage d'essieux, à assembler avec DKTL 5055 X A2 pour le tournage conique, le chariotage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KTP-CFNR 1911
Product Number6803672
Product FamilyKTP-CFN(RL)
Dimensions
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6803672
EAN3603602995797
File Type Download

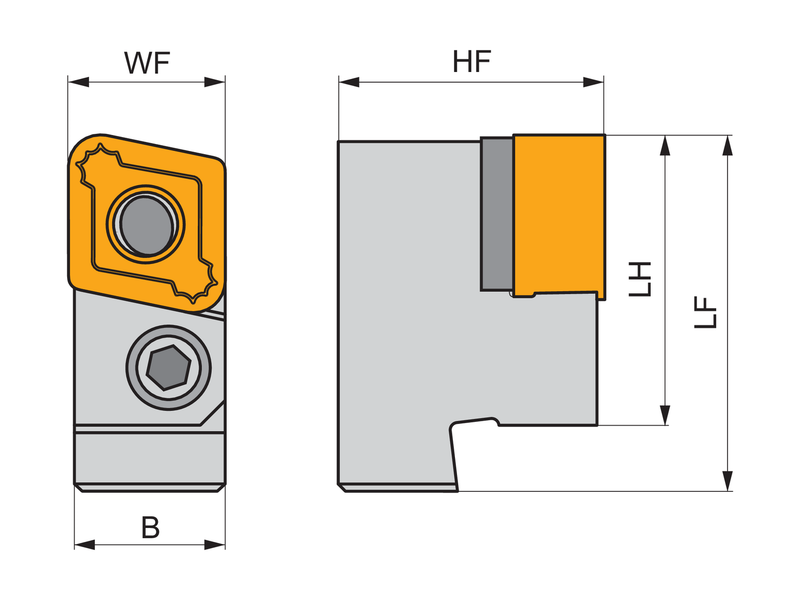

KTP-CFNR 1911 — Line Drawing PDF Download
