PSR2-R9:T9335
PSR2-R9:T9335

PSR2-R9:T9335

UGC DOR6803682
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.29 CAD - $45.29 CAD
$45.29 CAD
$45.29 CAD - $45.29 CAD
$45.29 CAD

Vendu en lots de : 10

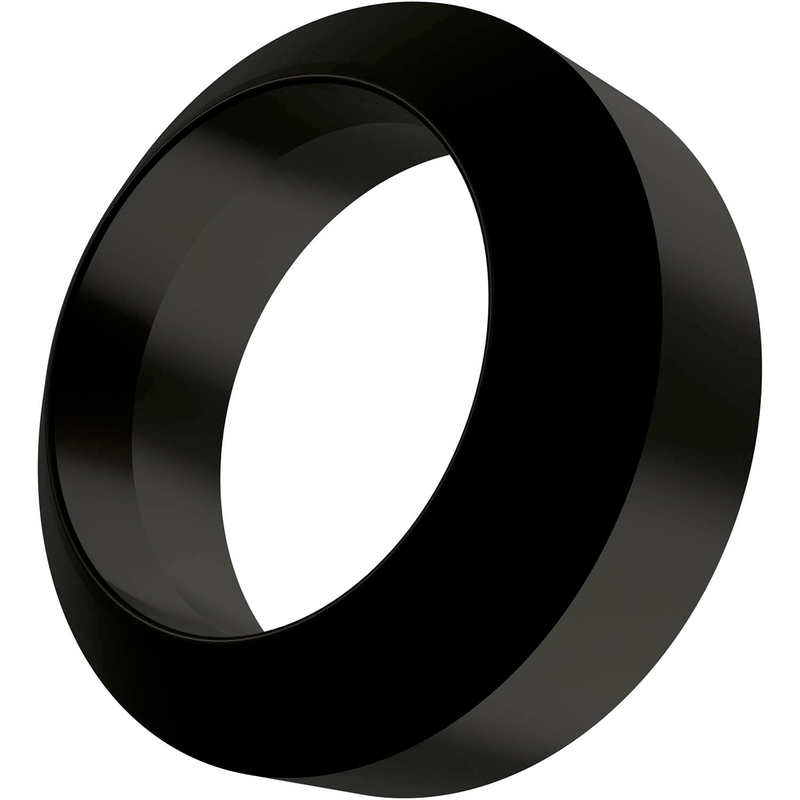

Anneau d'ébarbage d'un diamètre extérieur de 19 mm, d'un diamètre intérieur de 8 mm, de 8 mm d'épaisseur et d'un rayon de travail de 9,1 mm pour des diamètres de tube de 24 à 26 mm, en carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD T9335, dans les plages de nuances ISO P20-P45 et M15-M40, pour l'ébavurage intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR2-R9:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeau
Product Number6803682
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.315"
Insert Thickness — mm (S)8.0 mm
Tool Information
Reference Numbers
EDP Number6803682
EAN3603602995896
File Type Download

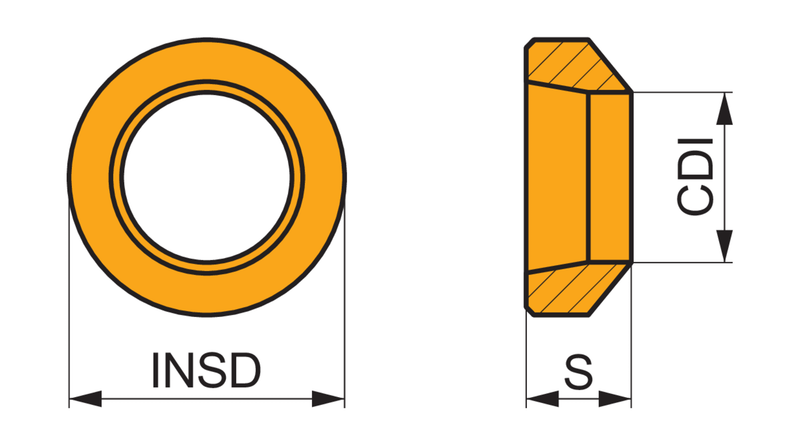

PSR2-R9:T9335 — Line Drawing PDF Download
