P8013.0X3.0
P8013.0X3.0
P8013.0X3.0

P8013.0X3.0

UGC DOR6814046
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.34 CAD - $10.34 CAD
$10.34 CAD
$10.34 CAD - $10.34 CAD
$10.34 CAD

Vendu en lots de : 1

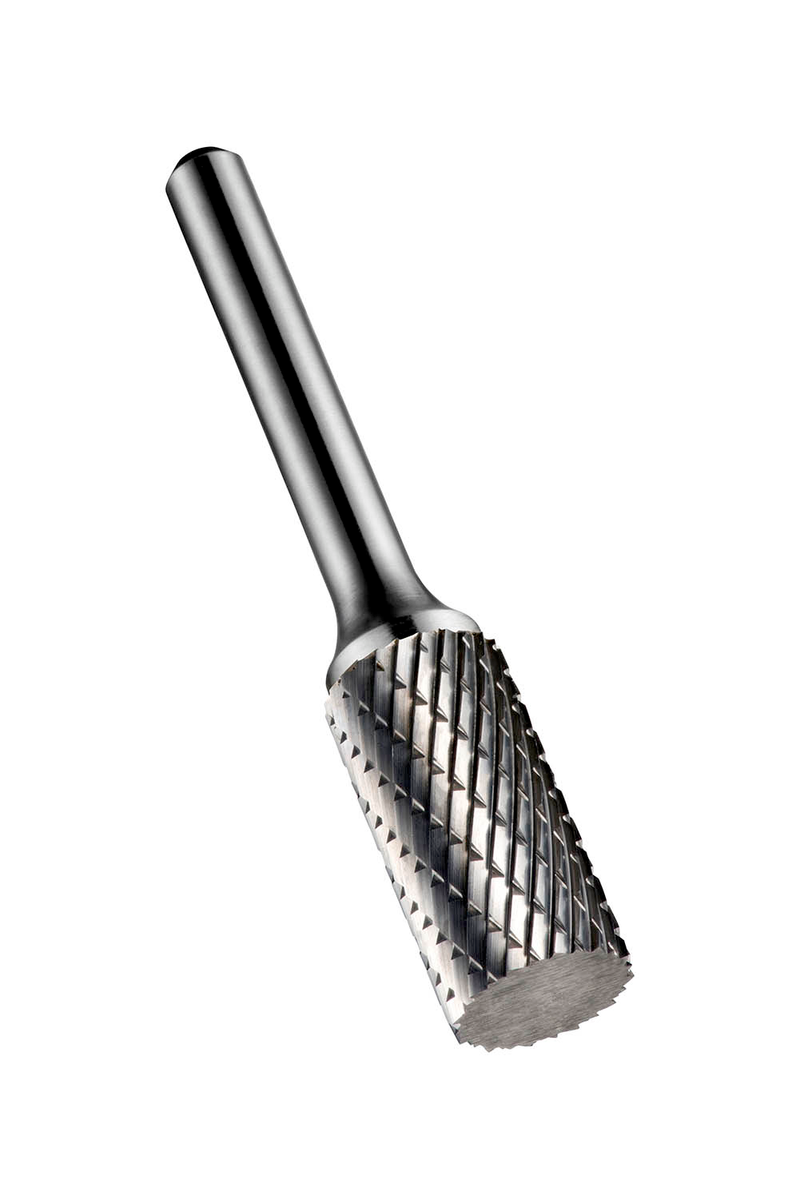

Lime-fraise cylindrique sans coupe en bout (forme A), diamètre 3 mm avec longueur de coupe de 14 mm, longueur totale de 38 mm et queue de 3 mm, carbure monobloc avec finition brillante, style de cannelure à double taille DC avec bords rapprochés pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8013.0X3.0
GradeLumineux
Product Number6814046
Product FamilyP801
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814046
EAN7320760687277
File Type Download
P8013.0X3.0 — Line Drawing PDF Download
