P8018.0X6.0
P8018.0X6.0
P8018.0X6.0

P8018.0X6.0

UGC DOR6814049
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.14 CAD - $23.14 CAD
$23.14 CAD
$23.14 CAD - $23.14 CAD
$23.14 CAD

Vendu en lots de : 1

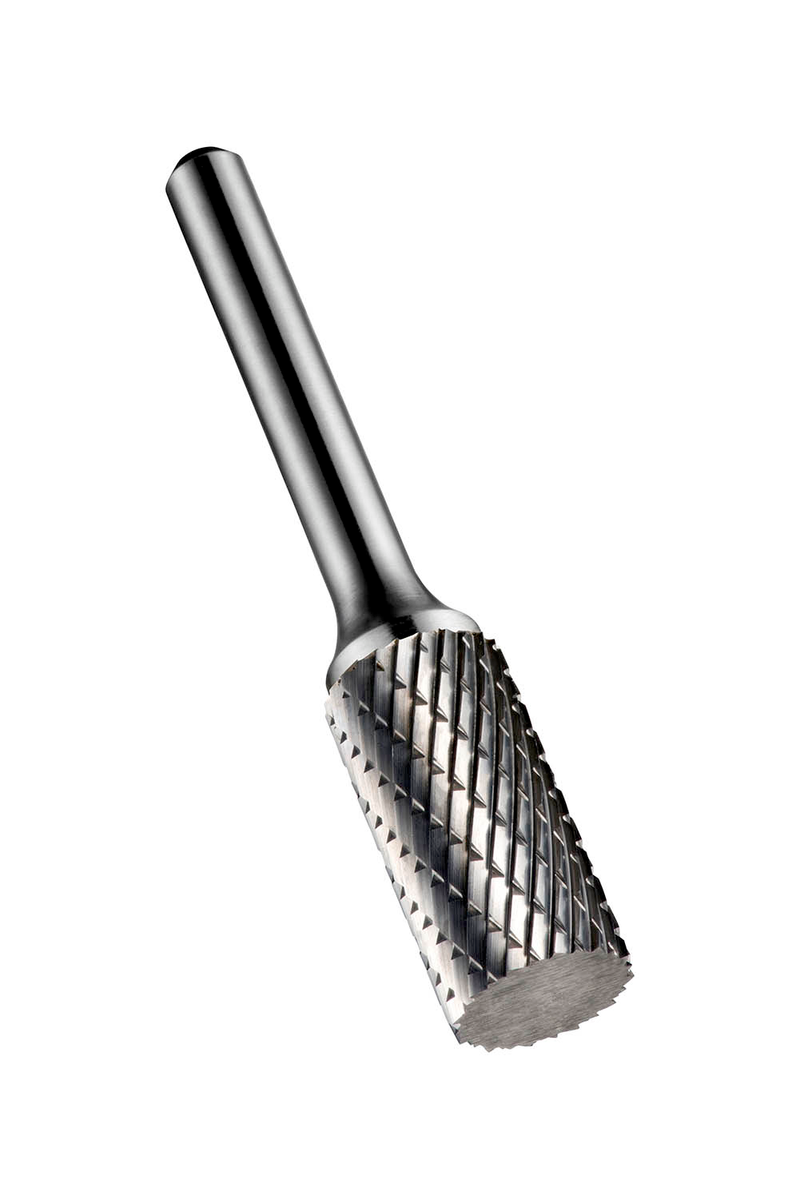

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 8 mm, longueur de coupe 19 mm, longueur totale 64 mm, queue de 6 mm, à pastille carbure avec queue en acier trempé et revenu et finition brillante, style de coupe croisée DC avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8018.0X6.0
GradeLumineux
Product Number6814049
Product FamilyP801
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814049
EAN7320760687307
File Type Download

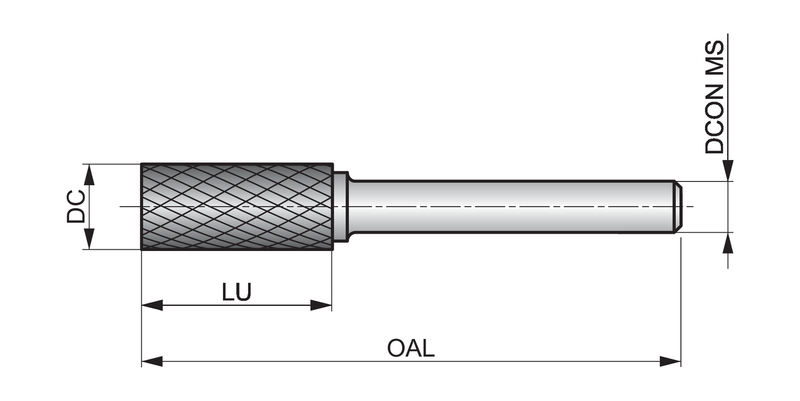

P8018.0X6.0 — Line Drawing PDF Download
