P80112.7X6.0
P80112.7X6.0
P80112.7X6.0

P80112.7X6.0

UGC DOR6814091
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.91 CAD - $38.91 CAD
$38.91 CAD
$38.91 CAD - $38.91 CAD
$38.91 CAD

Vendu en lots de : 1

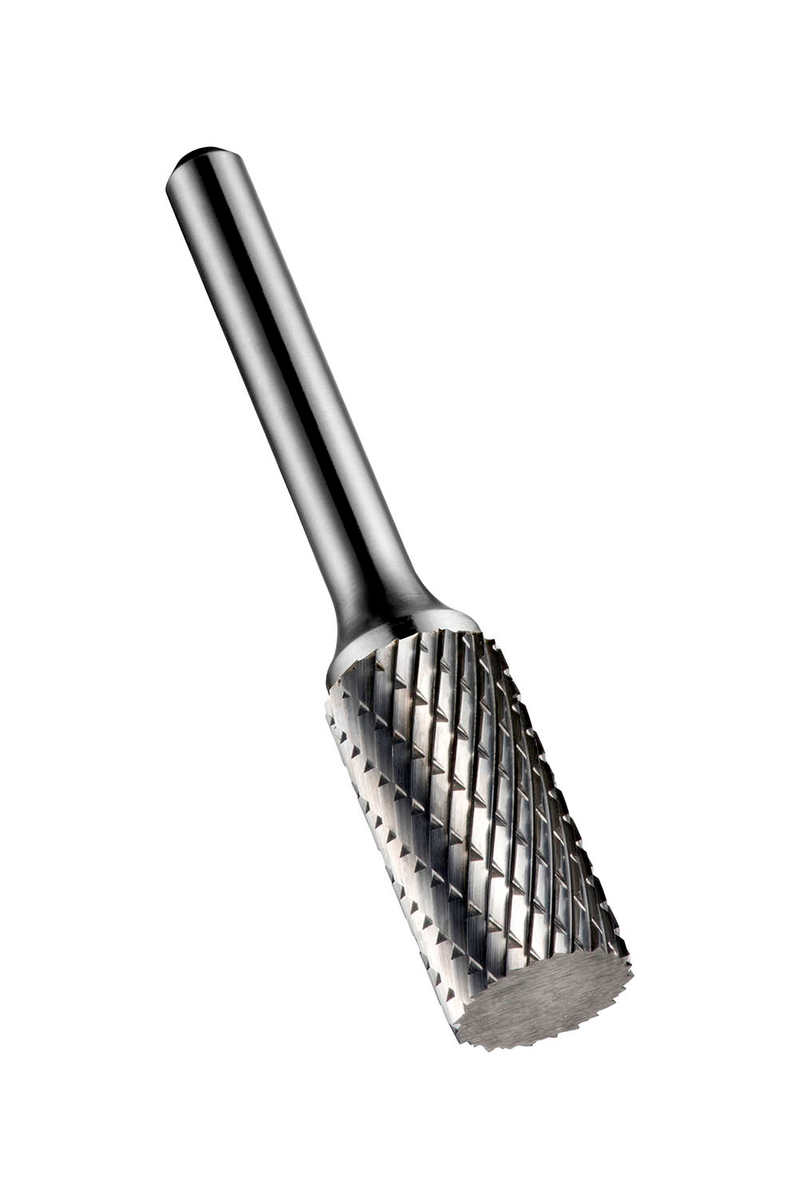

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 12,7 mm avec 25 mm de longueur de coupe, 70 mm de longueur totale et queue de 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, double coupe DC avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P80112.7X6.0
GradeLumineux
Product Number6814091
Product FamilyP801

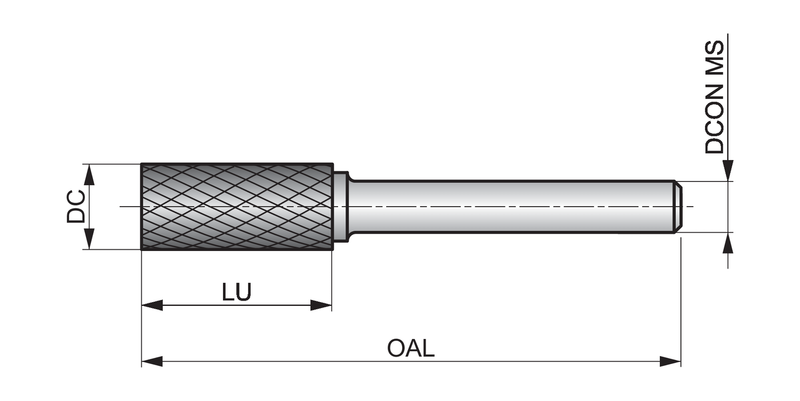

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814091
EAN7320760687321
File Type Download
P80112.7X6.0 — Line Drawing PDF Download
