P801C3.0X3.0
P801C3.0X3.0
P801C3.0X3.0

P801C3.0X3.0

UGC DOR6814093
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.97 CAD - $15.97 CAD
$15.97 CAD
$15.97 CAD - $15.97 CAD
$15.97 CAD

Vendu en lots de : 1

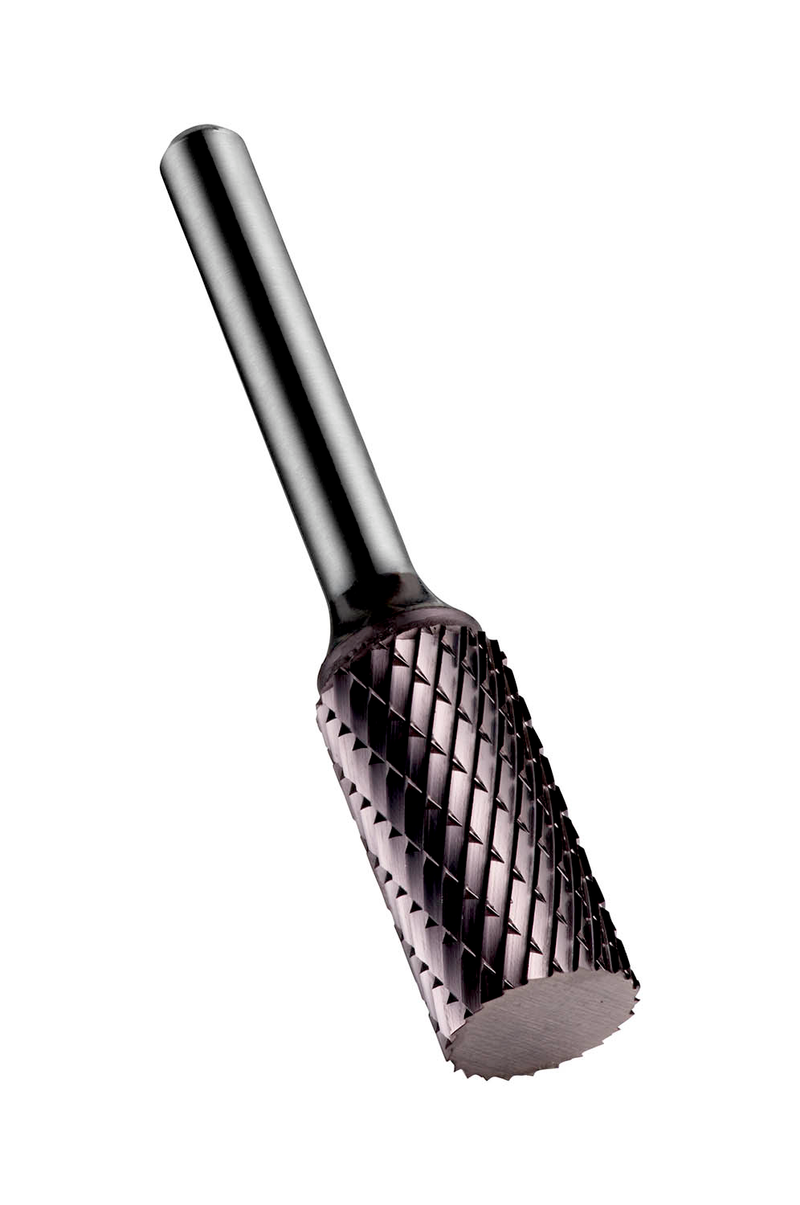

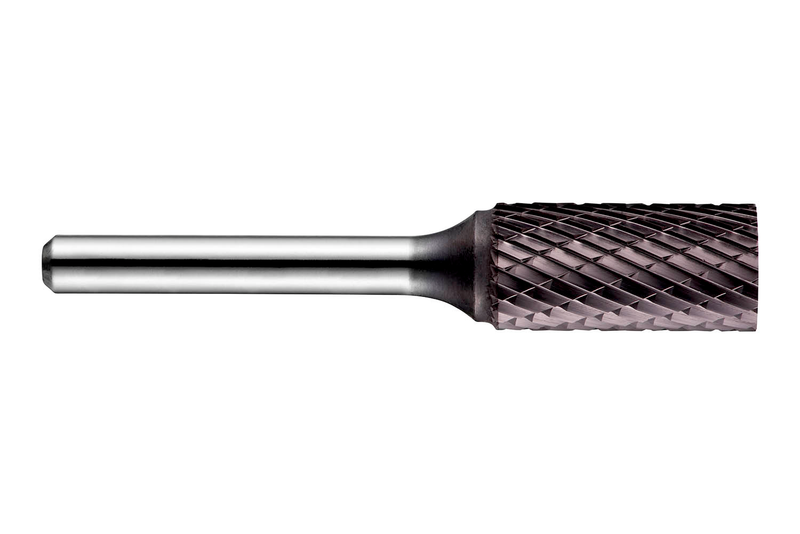

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 3mm avec une longueur de coupe de 14mm, longueur totale de 38mm et queue de 3mm, carbure monobloc avec revêtement TiAlN, double taille croisée DC avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P801C3.0X3.0
GradeTiAlN
Product Number6814093
Product FamilyP801C

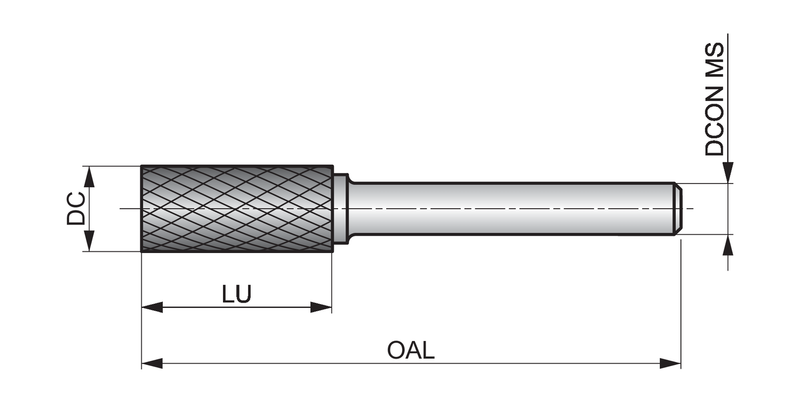

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814093
EAN7320760687345
File Type Download
P801C3.0X3.0 — Line Drawing PDF Download
