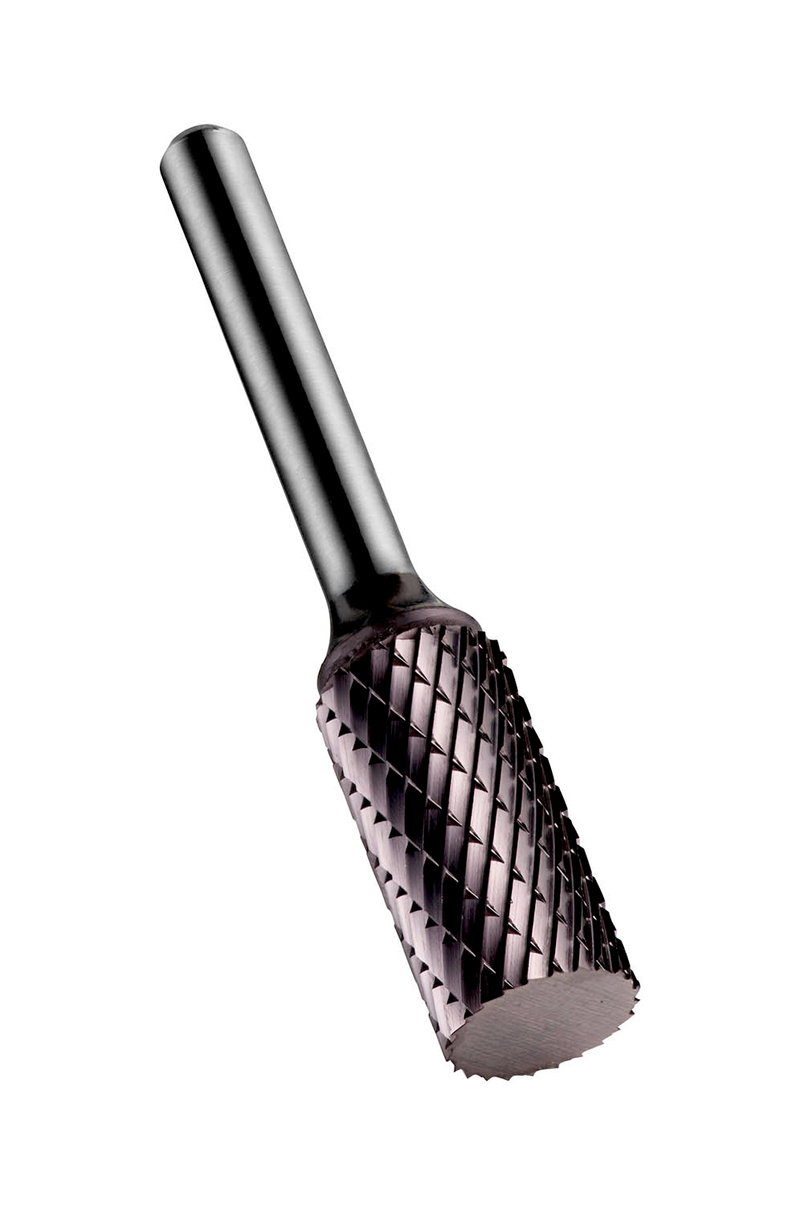

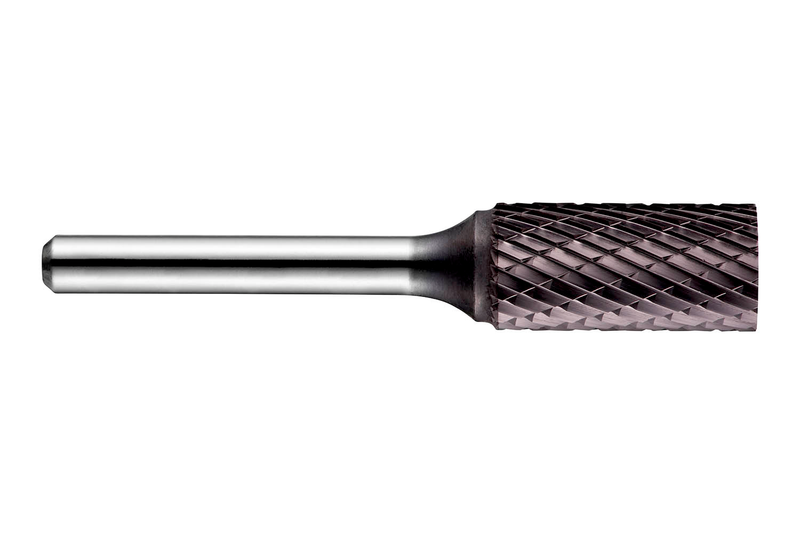

Lime cylindrique sans coupe frontale (forme A), diamètre 6 mm avec une longueur de coupe de 18 mm, une longueur totale de 50 mm et une tige de 6 mm, en carbure monobloc avec revêtement TiAlN, double coupe DC avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P801C6.0X6.0
GradeTiAlN
Product Number6814094
Product FamilyP801C

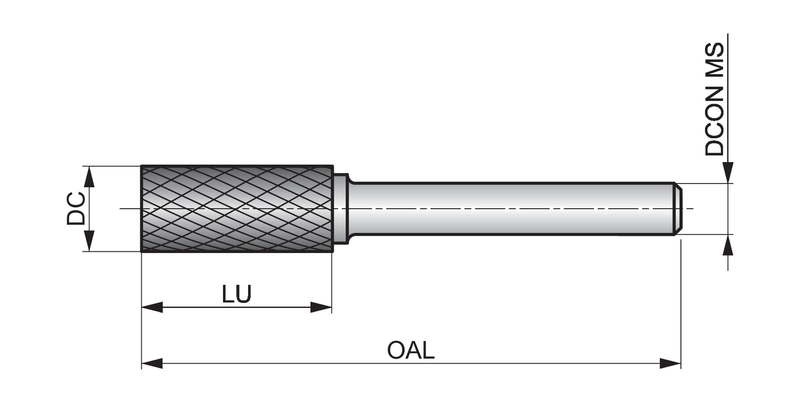

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814094
EAN7320760687352
File Type Download
P801C6.0X6.0 — Line Drawing PDF Download
