P801C8.0X6.0
P801C8.0X6.0
P801C8.0X6.0

P801C8.0X6.0

UGC DOR6814095
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.46 CAD - $32.46 CAD
$32.46 CAD
$32.46 CAD - $32.46 CAD
$32.46 CAD

Vendu en lots de : 1

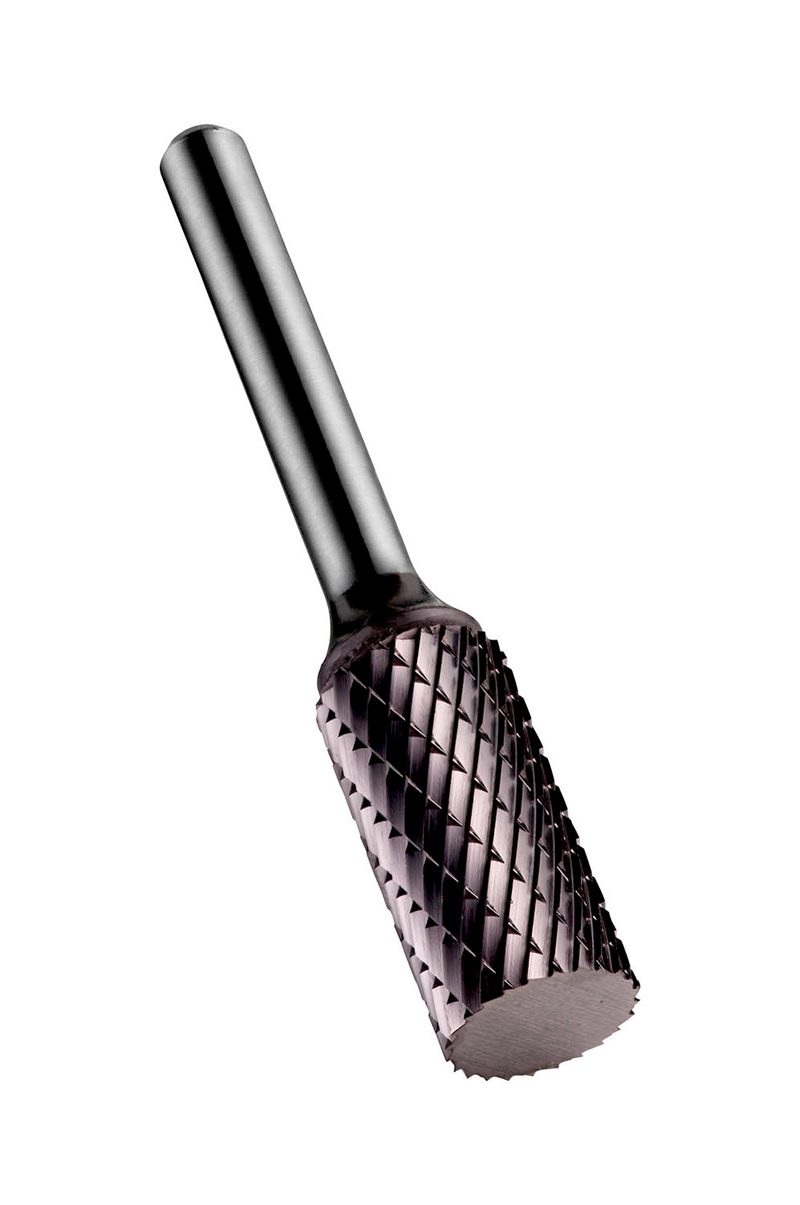

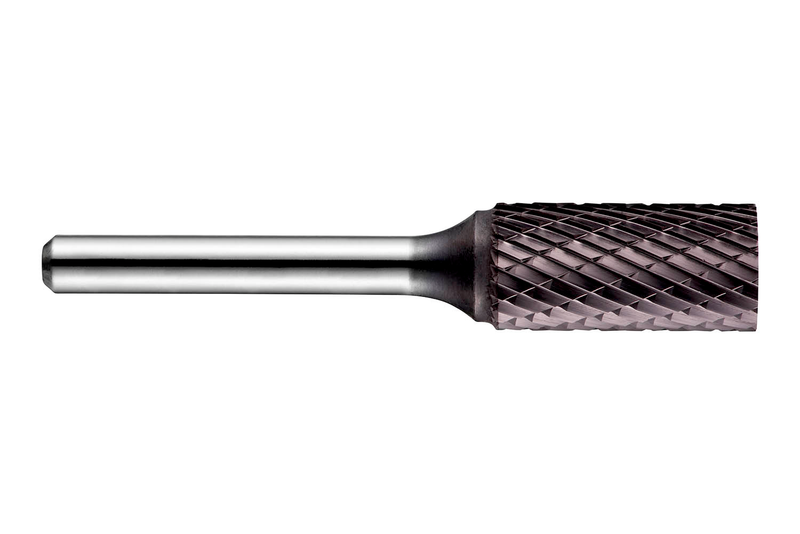

Fraise cylindrique sans coupe frontale (forme A), diamètre 8mm avec une longueur de coupe de 19mm, longueur totale de 64mm et queue de 6mm, pointe carbure avec queue en acier trempé et revenu et revêtement TiAlN, coupe double DC avec bords rapprochés pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)P801C8.0X6.0
Product Name (ISO)P801C8,0X6,0
GradeTiAlN
Product Number6814095
Product FamilyP801C

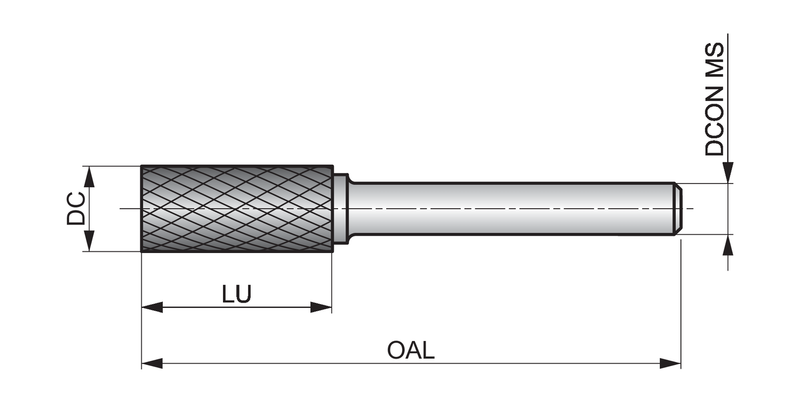

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814095
EAN7320760687369
File Type Download
P801C8.0X6.0 — Line Drawing PDF Download
