P801C12.7X6.0
P801C12.7X6.0
P801C12.7X6.0

P801C12.7X6.0

UGC DOR6814097
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.57 CAD - $50.57 CAD
$50.57 CAD
$50.57 CAD - $50.57 CAD
$50.57 CAD

Vendu en lots de : 1

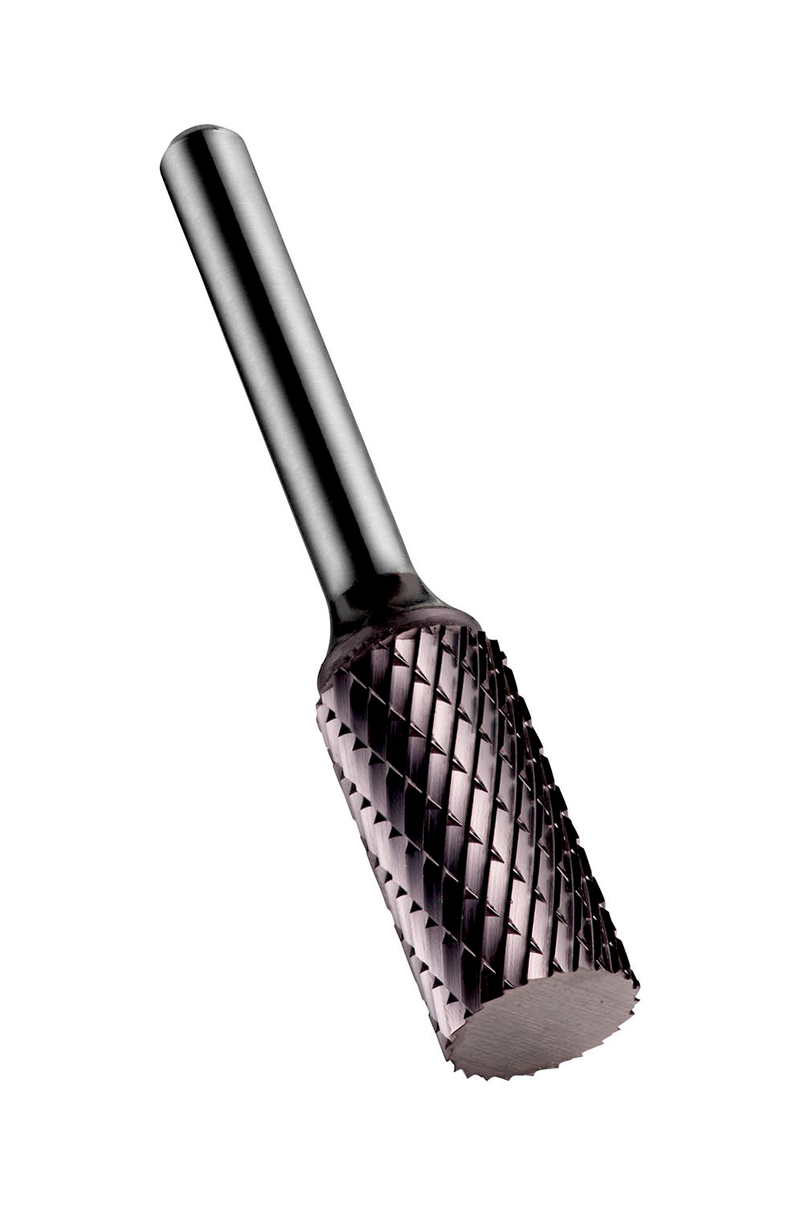

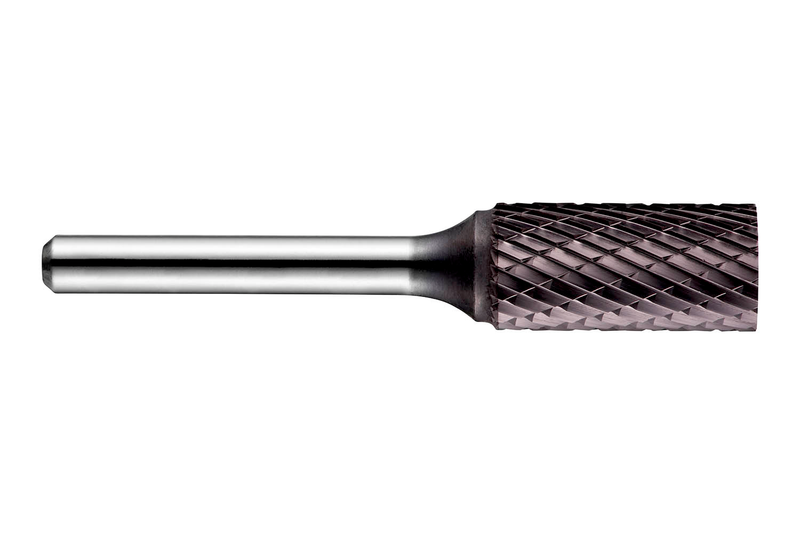

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 12,7mm avec 25mm de longueur de coupe, 70mm de longueur totale et queue de 6mm, à pointe carbure avec queue en acier trempé et revenu et revêtement TiAlN, style de denture à double coupe DC avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P801C12.7X6.0
GradeTiAlN
Product Number6814097
Product FamilyP801C

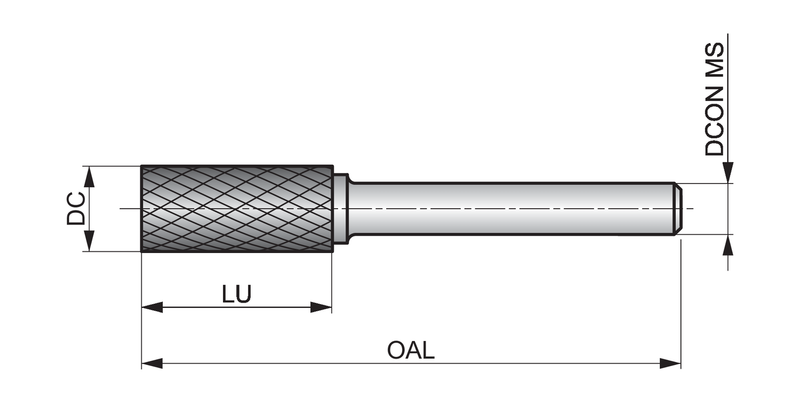

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814097
EAN7320760687383
File Type Download
P801C12.7X6.0 — Line Drawing PDF Download
