P8036.3X3.0
P8036.3X3.0
P8036.3X3.0

P8036.3X3.0

UGC DOR6814099
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.66 CAD - $18.66 CAD
$18.66 CAD
$18.66 CAD - $18.66 CAD
$18.66 CAD

Vendu en lots de : 1

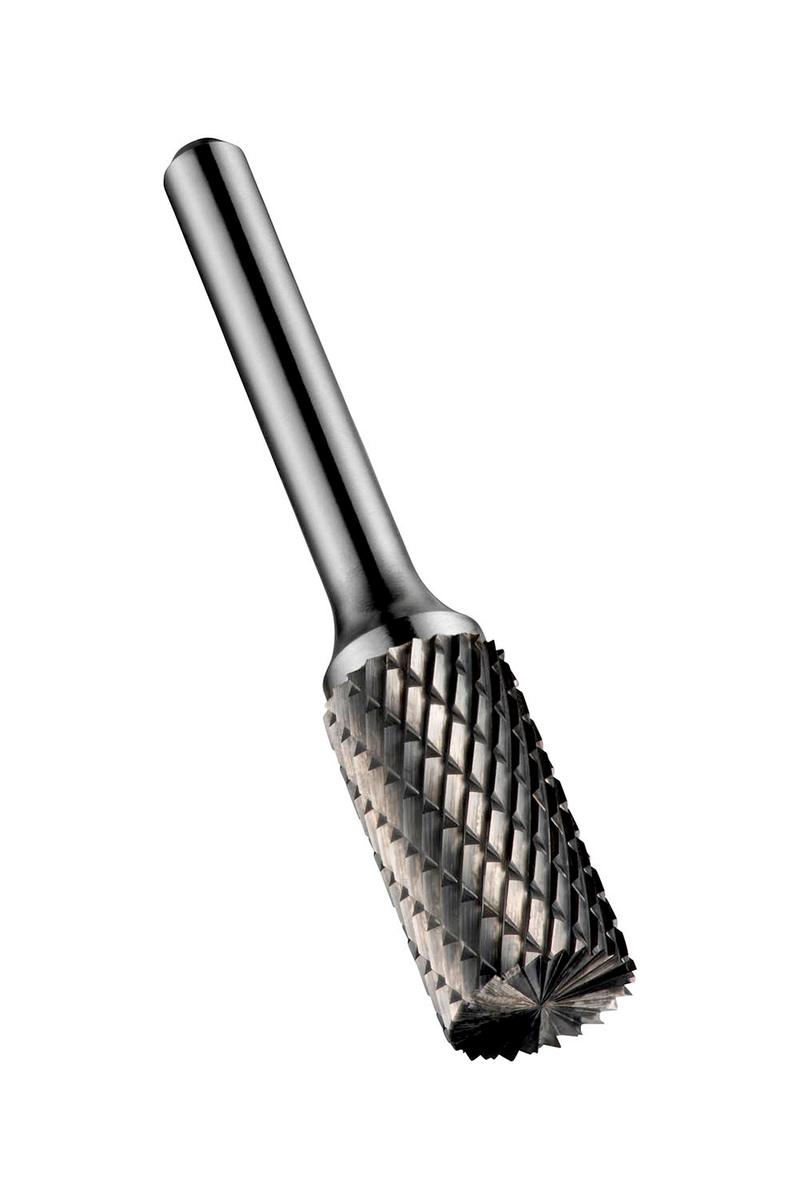

Fraise cylindrique frontale (forme B), diamètre 6,3 mm, longueur de coupe 12,7 mm, longueur totale 45 mm, queue 3 mm, avec pointe en carbure et queue en acier trempé et revenu, finition brillante, style de goujure à double taille DC avec bords rapprochés pour l'usinage des surfaces et des coins à angle droit dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8036.3X3.0
GradeLumineux
Product Number6814099
Product FamilyP803
Dimensions
Cutting Diameter — in (DC)0.248"
Cutting Diameter — mm (DC)6.3 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Usable Length — mm (LU)12.7 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814099
EAN7320760687406
File Type Download
P8036.3X3.0 — Line Drawing PDF Download
