P8036.0X6.0
P8036.0X6.0
P8036.0X6.0

P8036.0X6.0

UGC DOR6814100
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.40 CAD - $19.40 CAD
$19.40 CAD
$19.40 CAD - $19.40 CAD
$19.40 CAD

Vendu en lots de : 1

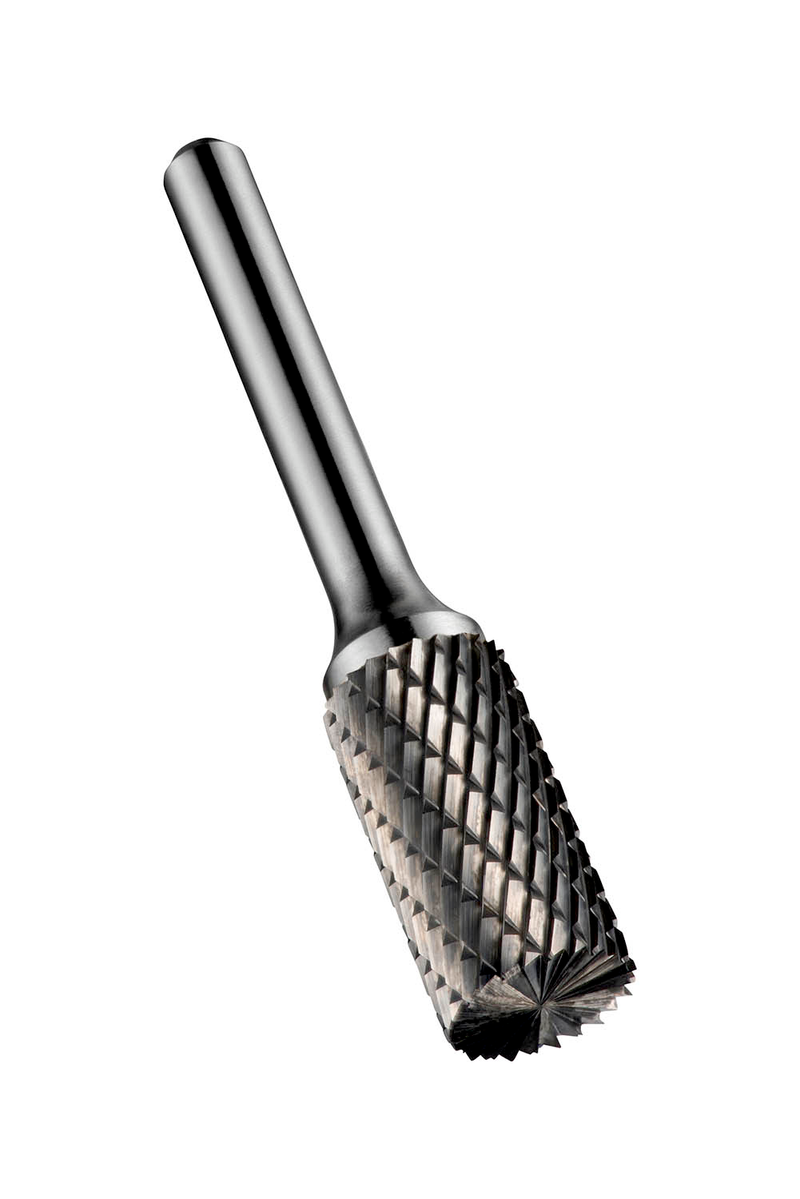

Fraise-lime cylindrique à bout coupant (forme B), diamètre 6mm, longueur de coupe 18mm, longueur totale 50mm, queue 6mm, carbure monobloc, finition brillante, double denture croisée avec arêtes rapprochées pour l'usinage de surfaces et de coins à angle droit dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8036.0X6.0
GradeLumineux
Product Number6814100
Product FamilyP803

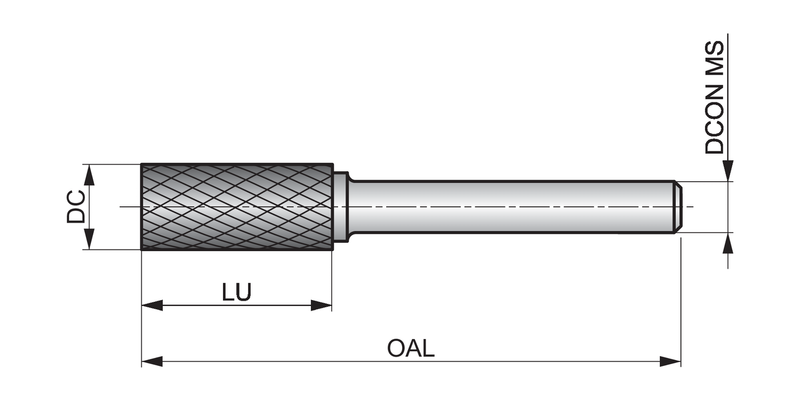

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814100
EAN7320760687413
File Type Download
P8036.0X6.0 — Line Drawing PDF Download
