P80316.0X6.0
P80316.0X6.0
P80316.0X6.0

P80316.0X6.0

UGC DOR6814104
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.94 CAD - $53.94 CAD
$53.94 CAD
$53.94 CAD - $53.94 CAD
$53.94 CAD

Vendu en lots de : 1

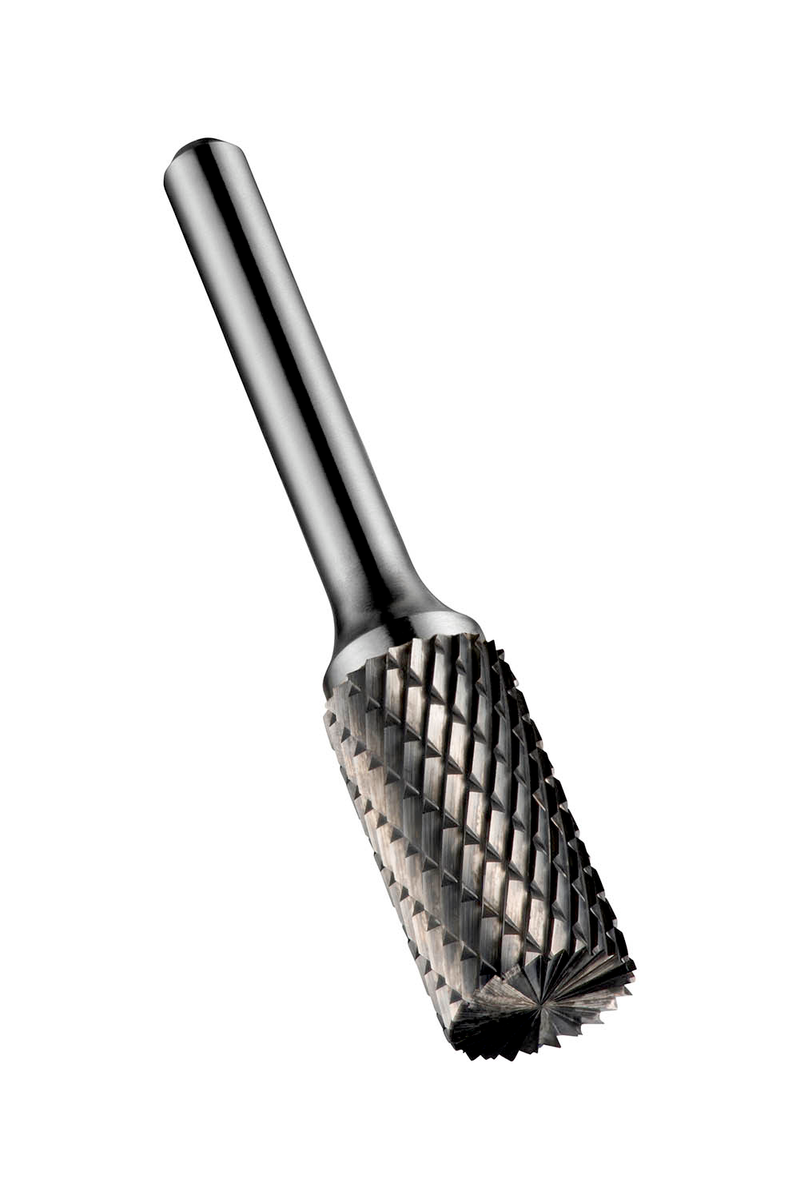

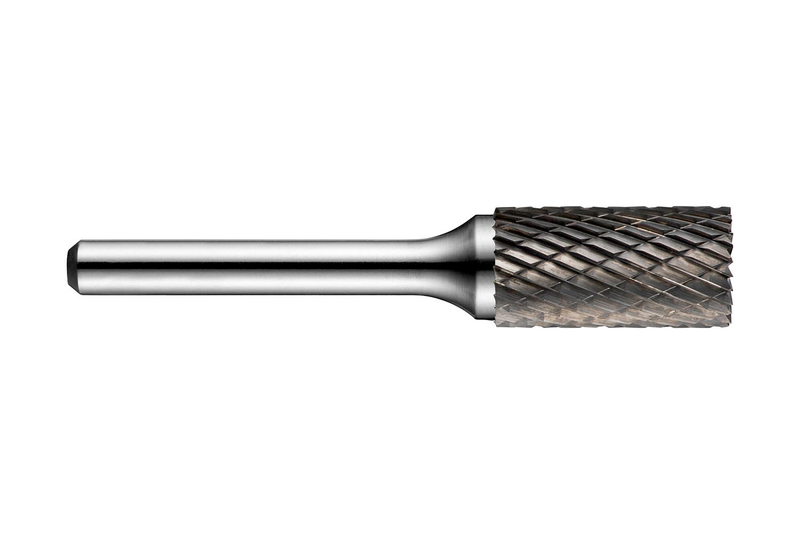

Fraise-lime cylindrique à coupe frontale (forme B), diamètre 16 mm, longueur de coupe 25 mm, longueur totale 70 mm et queue de 6 mm, à pointe carbure avec queue en acier trempé et revenu et finition brillante, double coupe (DC) avec bords rapprochés pour l'usinage de surfaces et d'angles droits dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P80316.0X6.0
GradeLumineux
Product Number6814104
Product FamilyP803
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814104
EAN7320760687451
File Type Download

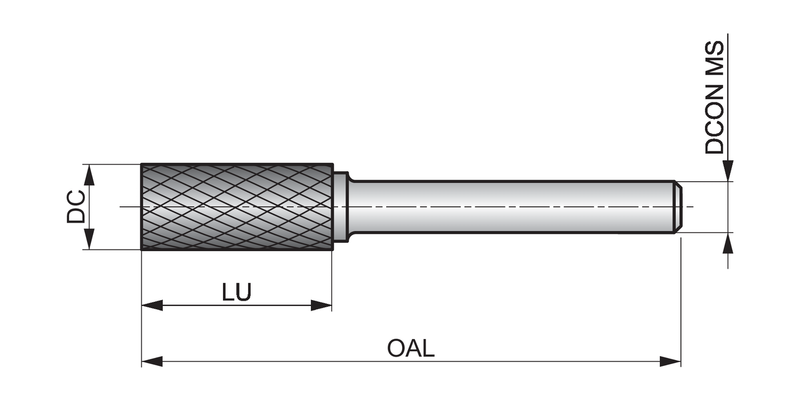

P80316.0X6.0 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
