P803C12,7X6,0
P803C12,7X6,0
P803C12,7X6,0

P803C12,7X6,0

UGC DOR6814109
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.43 CAD - $55.43 CAD
$55.43 CAD
$55.43 CAD - $55.43 CAD
$55.43 CAD

Vendu en lots de : 1

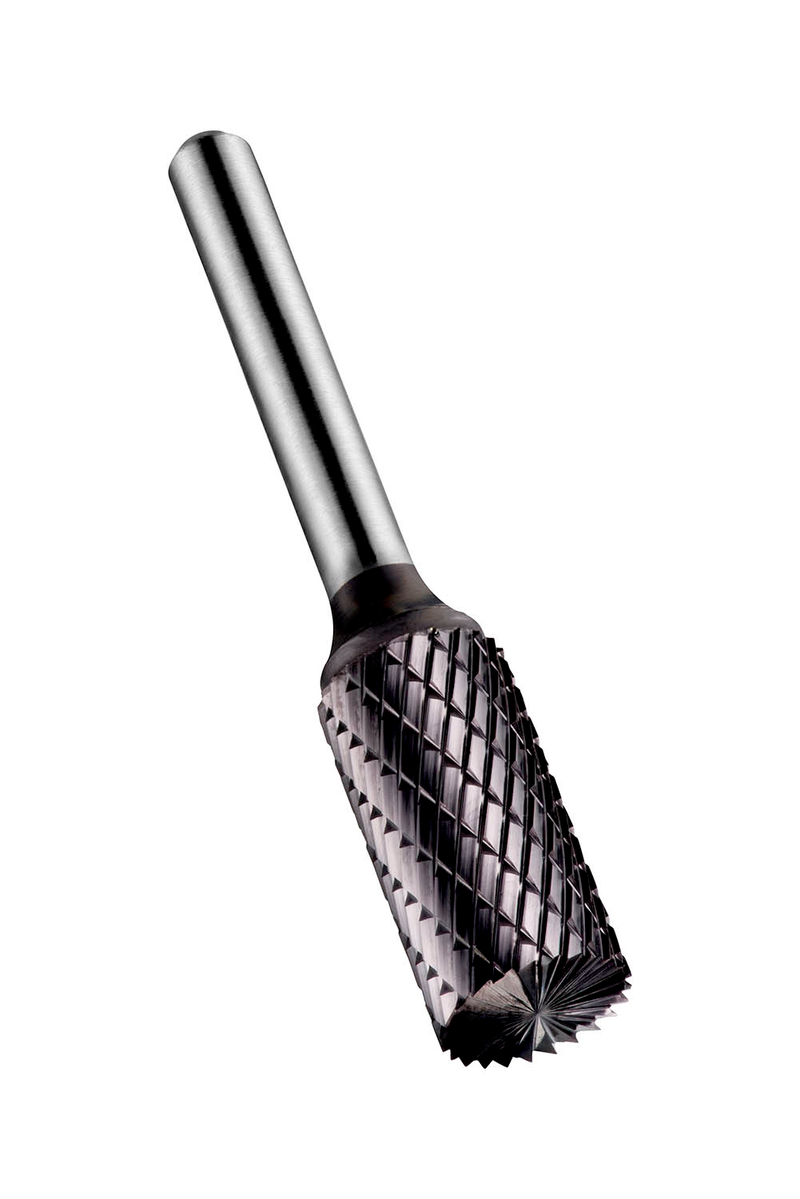

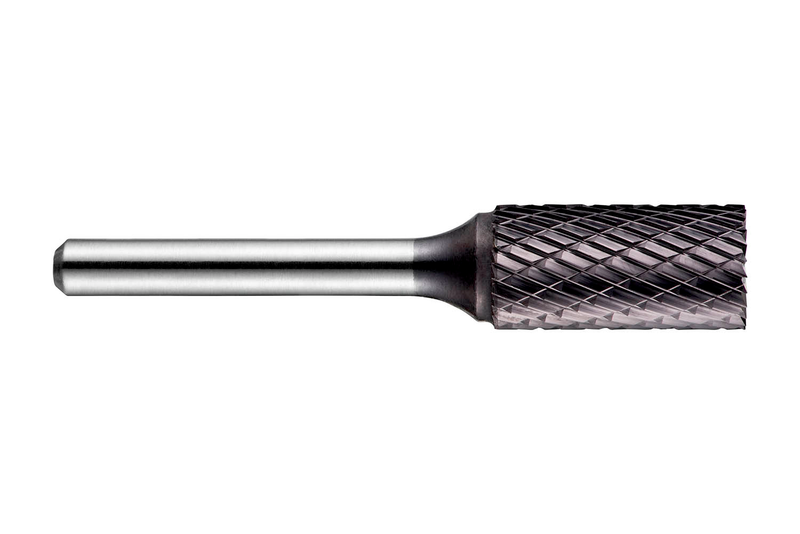

Lime cylindrique avec coupe frontale (forme B), diamètre 12,7 mm, longueur de coupe 25 mm, longueur totale 70 mm et queue de 6 mm, à pastilles carbure avec queue en acier trempé et revenu et revêtement TiAlN, double taille croisée DC avec arêtes rapprochées pour l'usinage de surfaces et d'angles droits dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)P803C12,7X6,0
Product Name (ISO)P803C12.7X6.0
GradeTiAlN
Product Number6814109
Product FamilyP803C
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814109
EAN7320760687505
File Type Download

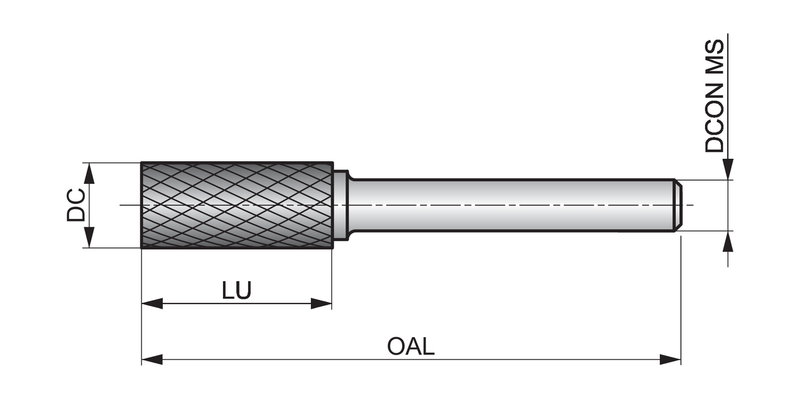

P803C12,7X6,0 — Line Drawing PDF Download
