P8053.0X3.0
P8053.0X3.0
P8053.0X3.0

P8053.0X3.0

UGC DOR6814110
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.34 CAD - $10.34 CAD
$10.34 CAD
$10.34 CAD - $10.34 CAD
$10.34 CAD

Vendu en lots de : 1

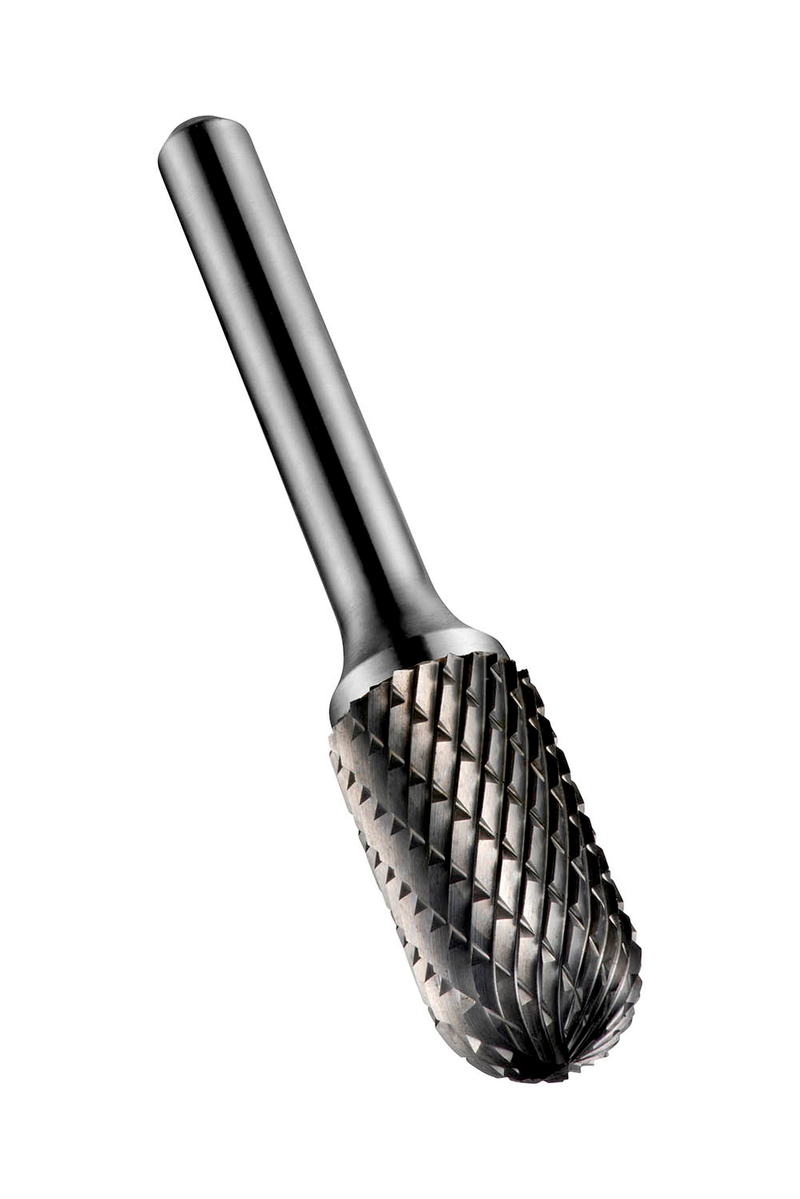

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 3 mm, longueur utile 14 mm, longueur totale 38 mm et queue 3 mm, carbure monobloc finition brillante, denture double avec arêtes rapprochées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8053.0X3.0
GradeLumineux
Product Number6814110
Product FamilyP805
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814110
EAN7320760687512
File Type Download

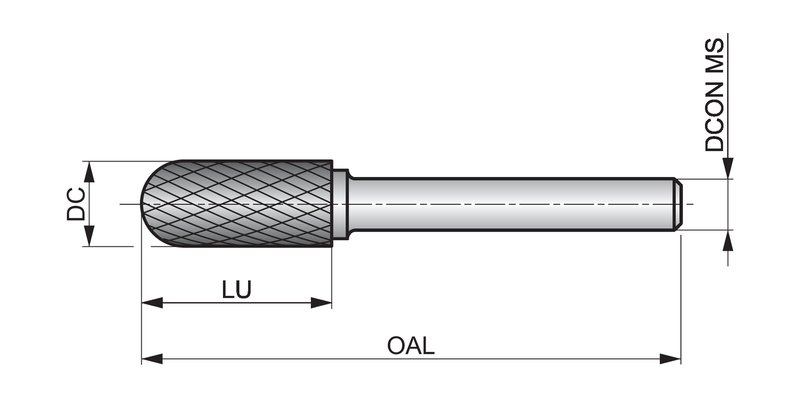

P8053.0X3.0 — Line Drawing PDF Download
