P8056.0X6.0
P8056.0X6.0
P8056.0X6.0

P8056.0X6.0

UGC DOR6814112
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.60 CAD - $20.60 CAD
$20.60 CAD
$20.60 CAD - $20.60 CAD
$20.60 CAD

Vendu en lots de : 1

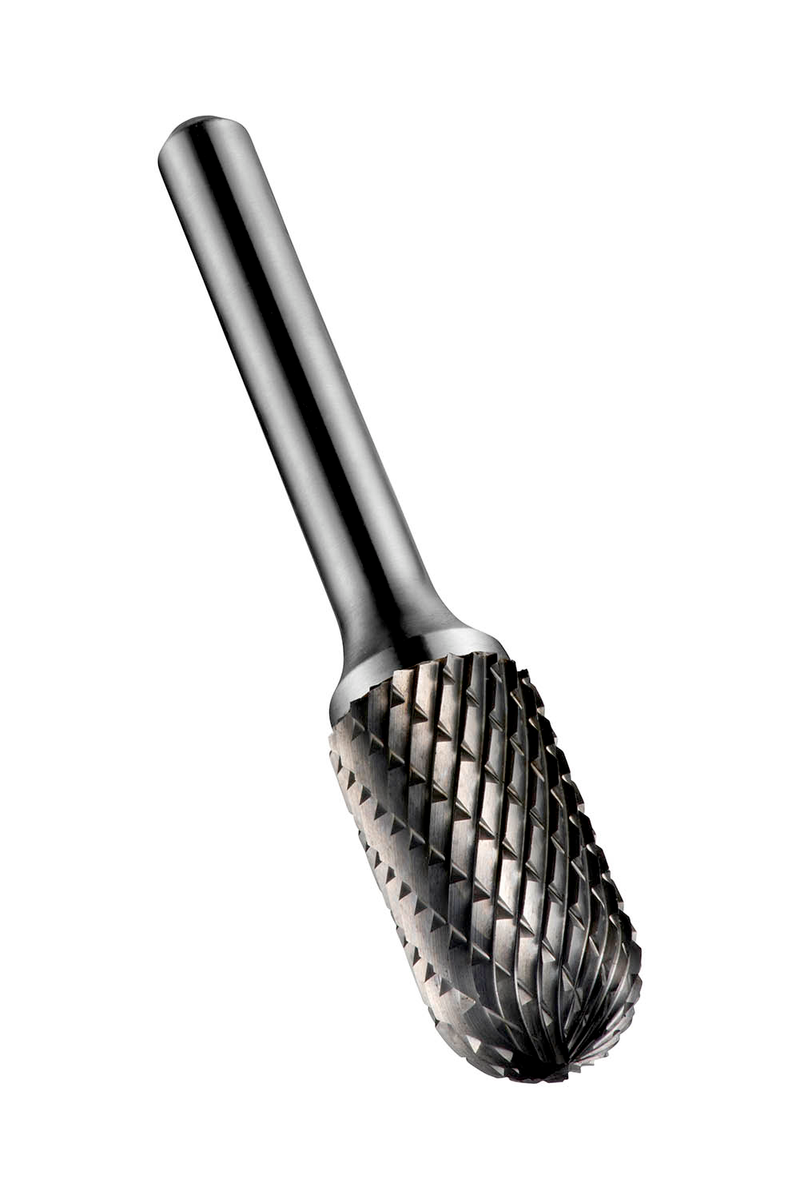

Fraise-lime cylindrique à extrémité sphérique (forme C), diamètre 6 mm, longueur de coupe 18 mm, longueur totale 50 mm et queue 6 mm, en carbure monobloc avec finition brillante, double denture DC avec arêtes rapprochées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8056.0X6.0
GradeLumineux
Product Number6814112
Product FamilyP805

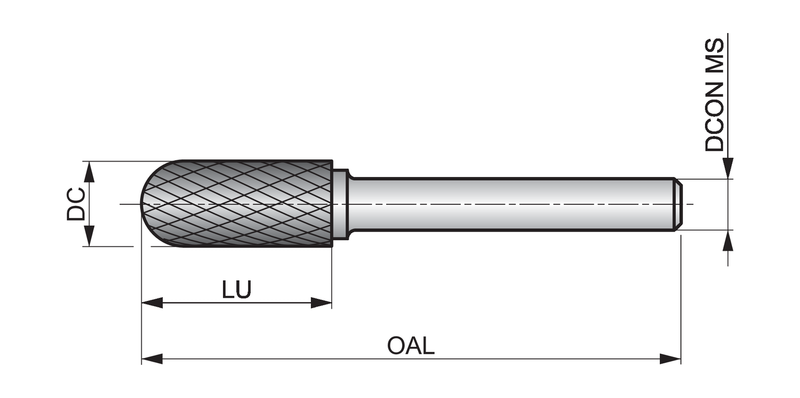

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814112
EAN7320760687536
File Type Download
P8056.0X6.0 — Line Drawing PDF Download
