P8059.6X6.0
P8059.6X6.0
P8059.6X6.0

P8059.6X6.0

UGC DOR6814114
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.63 CAD - $27.63 CAD
$27.63 CAD
$27.63 CAD - $27.63 CAD
$27.63 CAD

Vendu en lots de : 1

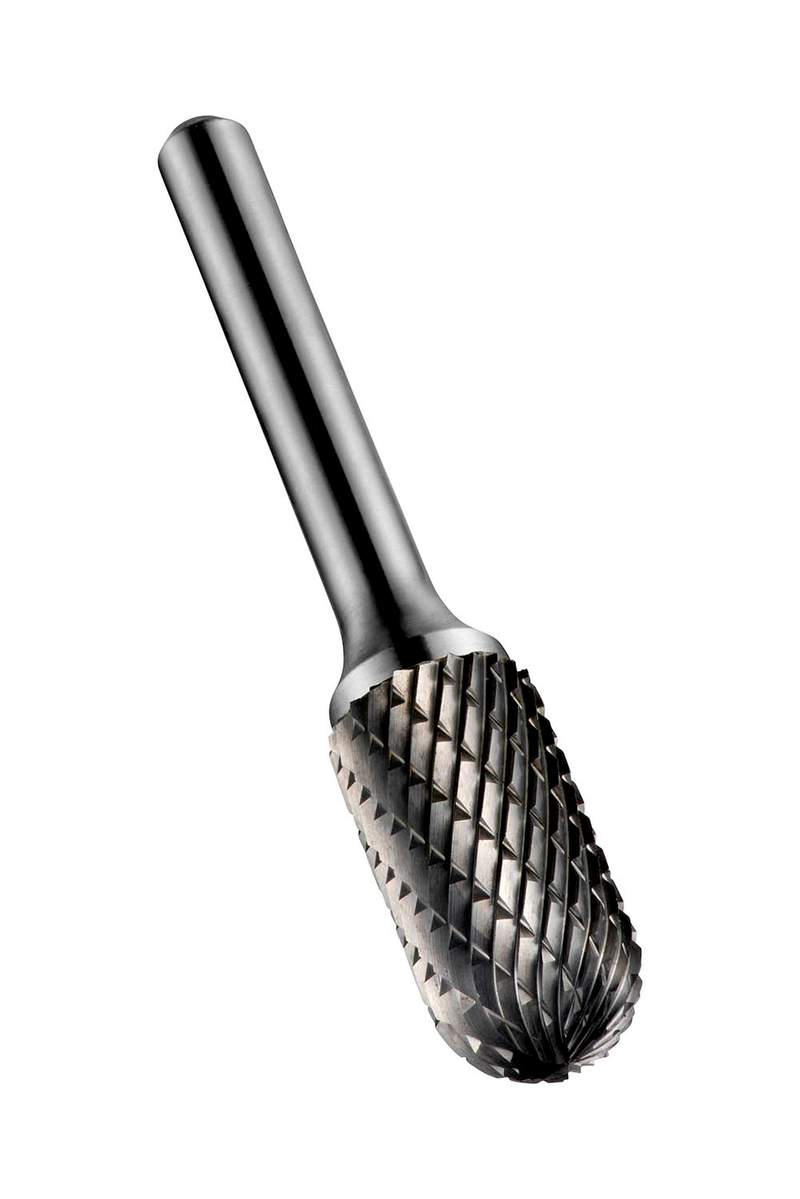

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 9,6 mm, longueur de coupe 19 mm, longueur totale 64 mm et queue de 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, double denture croisée DC avec arêtes rapprochées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les superalliages, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8059.6X6.0
GradeLumineux
Product Number6814114
Product FamilyP805
Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814114
EAN7320760687550
File Type Download

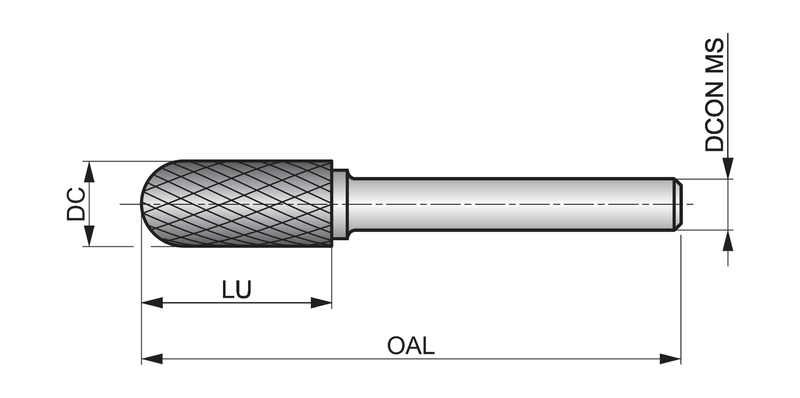

P8059.6X6.0 — Line Drawing PDF Download
