P80516.0X6.0
P80516.0X6.0
P80516.0X6.0

P80516.0X6.0

UGC DOR6814116
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.80 CAD - $54.80 CAD
$54.80 CAD
$54.80 CAD - $54.80 CAD
$54.80 CAD

Vendu en lots de : 1

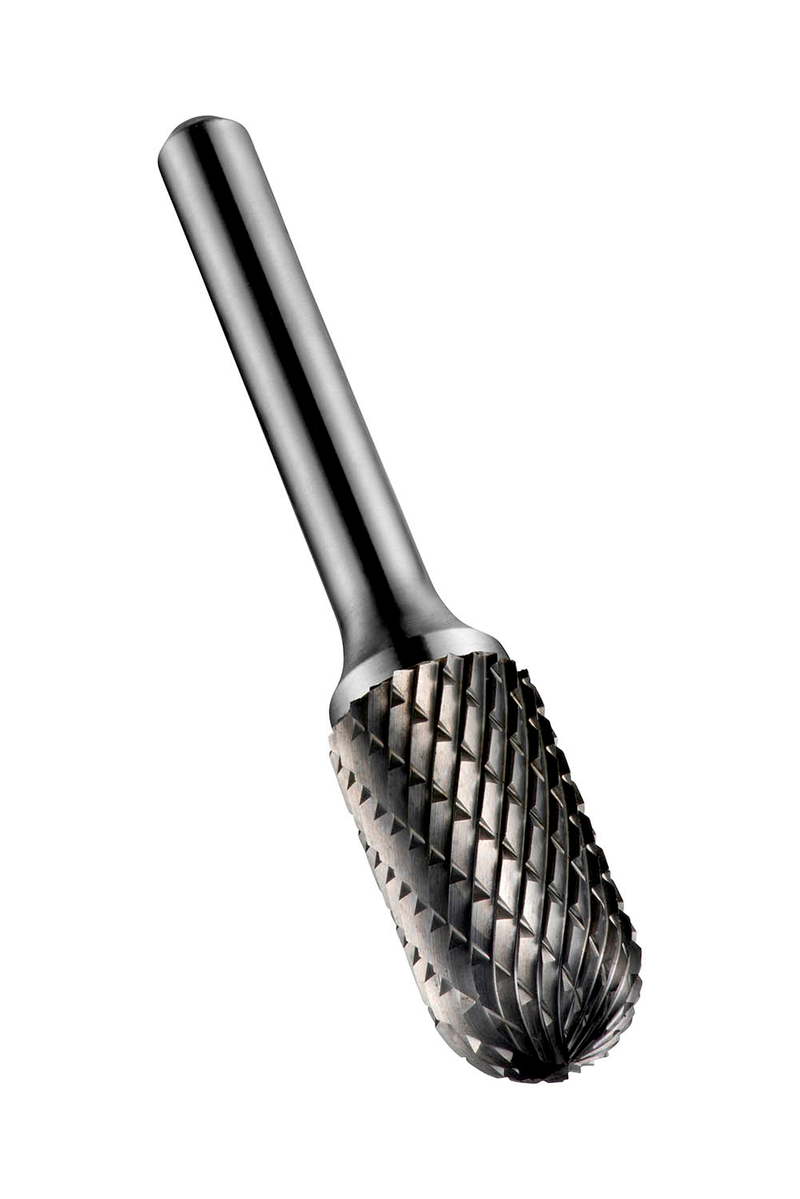

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 16 mm, longueur de coupe 25 mm, longueur totale 70 mm, queue 6 mm, à pastille carbure avec queue en acier trempé et revenu et finition brillante, coupe double croisée DC avec arêtes rapprochées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P80516.0X6.0
GradeLumineux
Product Number6814116
Product FamilyP805
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814116
EAN7320760687574
File Type Download

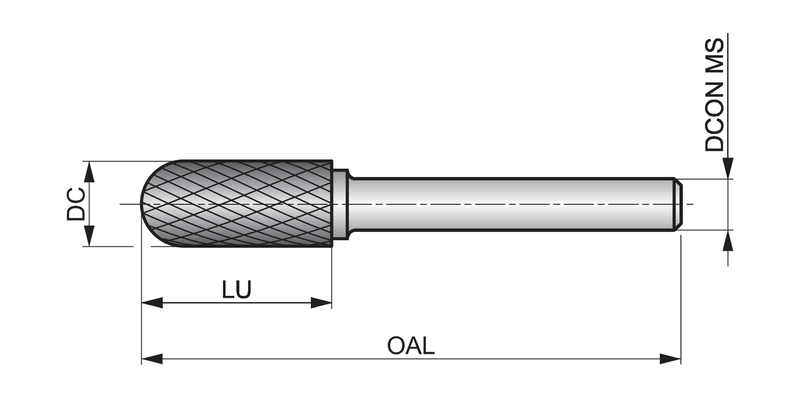

P80516.0X6.0 — Line Drawing PDF Download
