P805C6.0X6.0
P805C6.0X6.0
P805C6.0X6.0

P805C6.0X6.0

UGC DOR6814118
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.77 CAD - $26.77 CAD
$26.77 CAD
$26.77 CAD - $26.77 CAD
$26.77 CAD

Vendu en lots de : 1

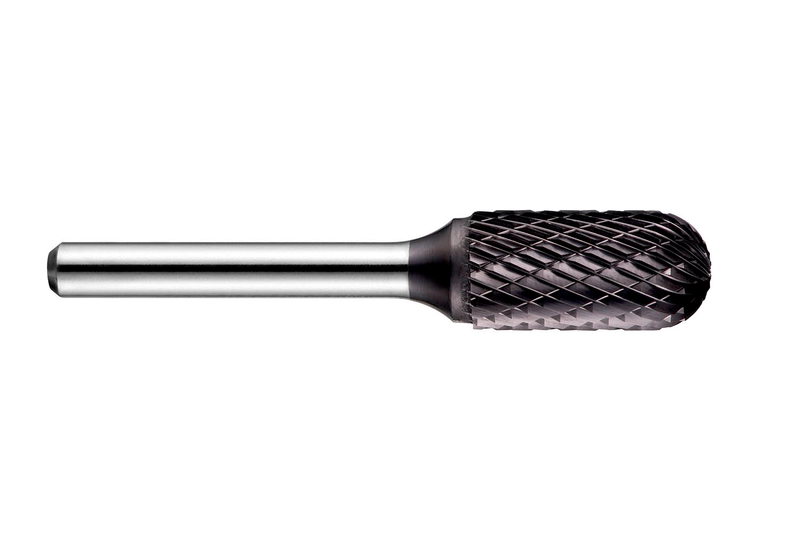

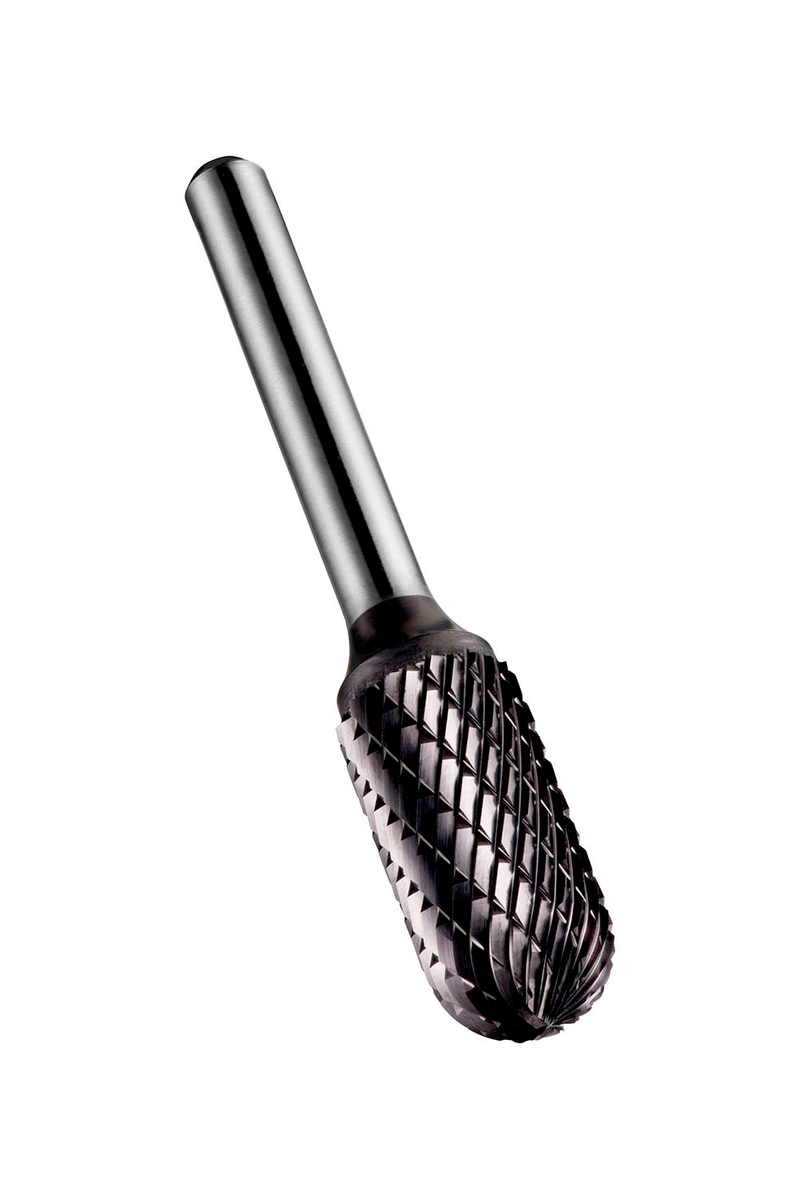

Lime rotative cylindrique à nez sphérique (forme C), diamètre 6mm avec 18mm de longueur de coupe, 50mm de longueur totale et 6mm de queue, carbure monobloc avec revêtement TiAlN, double coupe DC avec arêtes rapprochées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P805C6.0X6.0
GradeTiAlN
Product Number6814118
Product FamilyP805C

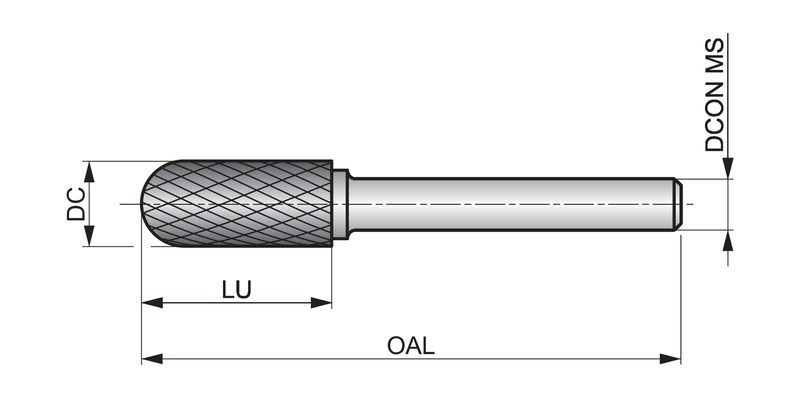

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814118
EAN7320760687598
File Type Download
P805C6.0X6.0 — Line Drawing PDF Download
